Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 814269 Ignitor, Burner   (Replaces: 816928) Special Order $ 193.20

1 877919 Screw, No.8x32x3/8 (2) Appelez-nous -
2 816927 Valve, Safety Appelez-nous -
2 241428 Screw, No.10x24x1/2 (2) Appelez-nous -
3 816925 Bracket, Support Appelez-nous -
4 816873 Nut, Wing Appelez-nous -
5 816926 Regulator Appelez-nous -
6 816821 Valve, Shut Off Appelez-nous -
7 816818 Cord, Power Appelez-nous -
8 816825 Burner, Bake Appelez-nous -
9 816922 Baffle, Bake Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

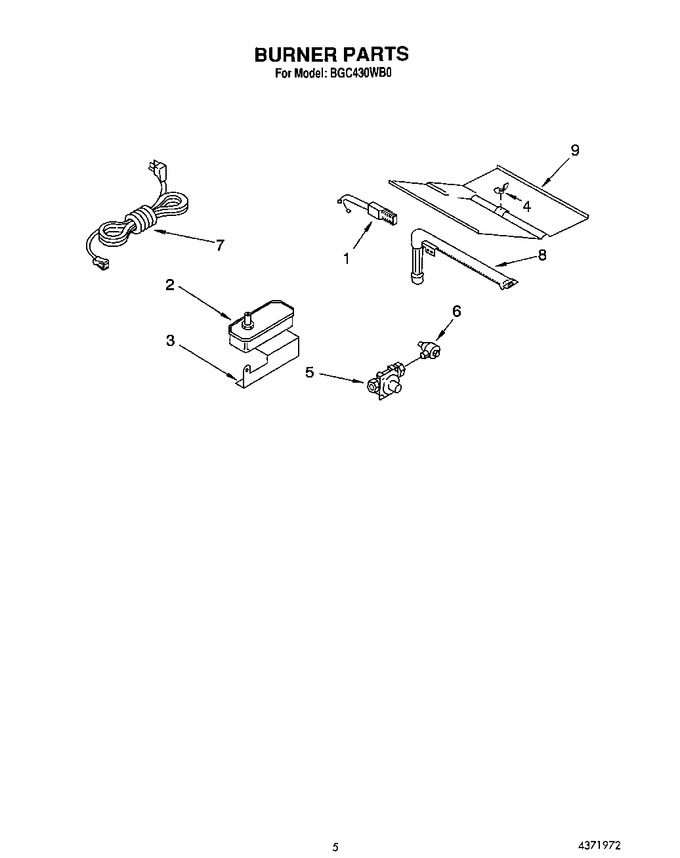

Diagram for BGC430WB0
