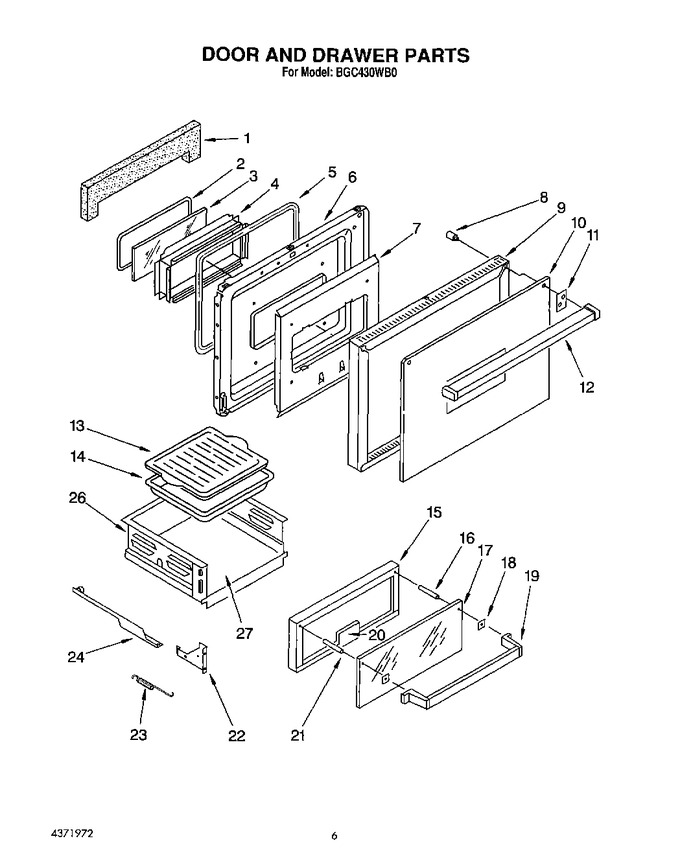

05 - Door And Drawer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816450		Insulation, Door		Appelez-nous	-
2	816376		Seal, Window		Appelez-nous	-
3	816377		Glass, Inner Door		Appelez-nous	-
4	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
4	816934		Collar, Glass		Appelez-nous	-
5	816417		Seal-oven Door		Appelez-nous	-
6	816270		Screw, No.10x24x5/8 (4)		Appelez-nous	-
6	816933		Liner, Door		Appelez-nous	-
7	816508		Panel, Airwash		Appelez-nous	-
8	816720		Spacer, Handle (2)		Appelez-nous	-
9	816840		Frame, Door		Appelez-nous	-
9	314933		Screw, No.8x18x1/2 (3)		Appelez-nous	-
10	816833		Glass, Outer Door		Appelez-nous	-
11	816440		Spacer, Handle (2)		Appelez-nous	-
12	816359		Screw, No.10x24x21/4 (2)		Appelez-nous	-
12	816834		Handle, Door		Appelez-nous	-
13	816947		Grid, Broiler		Appelez-nous	-
14	816954		Pan, Broiler		Appelez-nous	-
15	816943		Trim, Drawer		Appelez-nous	-
16	816941		Spacer, Handle (2)		Appelez-nous	-
17	816842		Panel, Glass		Appelez-nous	-
18	816440		Spacer, Handle (2)		Appelez-nous	-
19	816834		Handle, Drawer		Appelez-nous	-
19	816270		Screw, No.10x24x5/8 (2)		Appelez-nous	-
20	816939		Panel, Inner Door		Appelez-nous	-
21	816941		Spacer, Handle (2)		Appelez-nous	-
22	816938		Hinge, Broiler (left Hand)		Appelez-nous	-
22	816937		Hinge, Broiler (right Hand)		Appelez-nous	-
23	816942		Spring, Broiler (2)		Appelez-nous	-
24	816897		Track, Broiler (left Side)		Appelez-nous	-
24	816896		Track, Broiler (right Side)		Appelez-nous	-
26	816935		Drawer, Broiler		Appelez-nous	-
26	816755		Screw, No.8x18x3/8 (4)		Appelez-nous	-
27	816940		Panel, Broiler Drawer Bottom		Appelez-nous	-
	LIT816767		Installation Instructions		Appelez-nous	-
	LIT4371972		Repair Parts List		Appelez-nous	-
	LIT816769		Guide, Use And Care		Appelez-nous	-
