SELECT A DIAGRAM

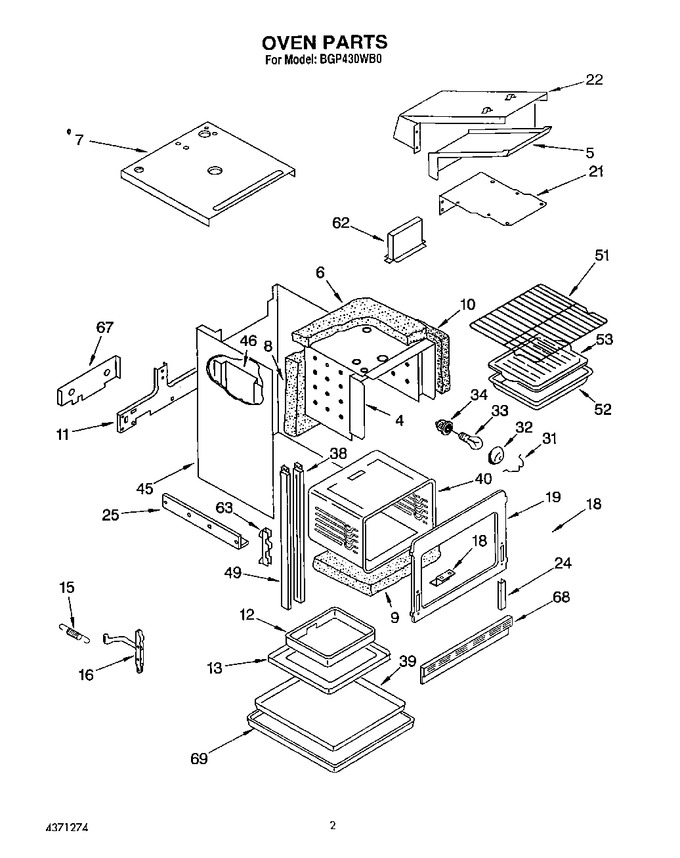

02 - Oven


03 - Control Panel


04 - Burner


05 - Door And Drawer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	816967		Shield, Top And Sides		Appelez-nous	-
5	816852		Box, Flue		Appelez-nous	-
6	816866		Insulation		Appelez-nous	-
7	816972		Shield, Oven Top		Appelez-nous	-
7	313823		Screw, No.8x22x5/16 (10)		Appelez-nous	-
8	816950		Insulation, Back		Appelez-nous	-
9	816949		Insulation, Bottom		Appelez-nous	-
10	816948		Insulation, Top & Sides		Appelez-nous	-
11	816924		Bracket, Safety Valve		Appelez-nous	-
12	816923		Box, Burner		Appelez-nous	-
12	WP308685		Screw, No.10x24x1/2 (11)   (Replaces: 308685)			Immediately	$ 7.08
13	816814		Bottom, Oven		Appelez-nous	-
15	816287		Spring, Door (2)		Appelez-nous	-
16	816932		Hinge, Door (2)		Appelez-nous	-
18	816965		Shield, Vent		Appelez-nous	-
19	816945		Frame, Front		Appelez-nous	-
21	816889		Shield, Flue Bottom		Appelez-nous	-
22	816968		Shield, Flue Top		Appelez-nous	-
22	WP488729		Screw, No.8x20x1/2 (12)   (Replaces: 313638)			Immediately	$ 7.45
24	816893		Support, Oven Front (2)		Appelez-nous	-
25	816284		Support, Height Adjustment (2)		Appelez-nous	-
25	816325		Screw, No.6x32x1/2 (6) No.10x24x1/2 (2)		Appelez-nous	-
31	816291		Retainer, Lens		Appelez-nous	-
32	816609		Lens, Oven Lamp		Appelez-nous	-
33	40A15		Lamp, Oven   (Replaces: 816389)			Immediately	$ 1.98
34	W10856866		Socket, Lamp   (Replaces: 816891)				$ 6.80
38	816900		Trim, Inner (left Side)		Appelez-nous	-
38	816899		Trim, Inner (right Side)		Appelez-nous	-
39	816887		Shield, Insulation (base)		Appelez-nous	-
40	816953		Liner, Oven		Appelez-nous	-
45	816905		Wrapper, Back And Sides		Appelez-nous	-
46	816886		Shield, Body Sides		Appelez-nous	-
49	816848		Trim, Outer Side (black)		Appelez-nous	-
49	816915		Trim, Outer Side (white)		Appelez-nous	-
51	816342		Rack, Oven		Appelez-nous	-
52	816954		Pan, Broiler		Appelez-nous	-
53	816947		Grid, Broiler Pan		Appelez-nous	-
62	816851		Flue, Adaptor		Appelez-nous	-
63	816388		Channel, Hinge		Appelez-nous	-
67	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
67	816929		Shield, Housing		Appelez-nous	-
68	816901		Trim, Base (black)		Appelez-nous	-
68	816410		Trim, Base (screw (2))		Appelez-nous	-
69	816908		Shield, Oven Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
