Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 814269 Ignitor, Burner   (Replaces: 816928) Special Order $ 193.20

3 877919 Screw, No.8x32x3/8 (2) Appelez-nous -
12 241428 Screw, No.10x24x1/2 (2) Appelez-nous -
12 816927 Valve, Safety Appelez-nous -
15 816873 Nut, Wing Appelez-nous -
18 816817 Regulator Appelez-nous -
19 816821 Valve, Shut Off Appelez-nous -
20 816818 Cord, Power Appelez-nous -
28 816825 Burner, Bake Appelez-nous -
32 816922 Baffle, Bake Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

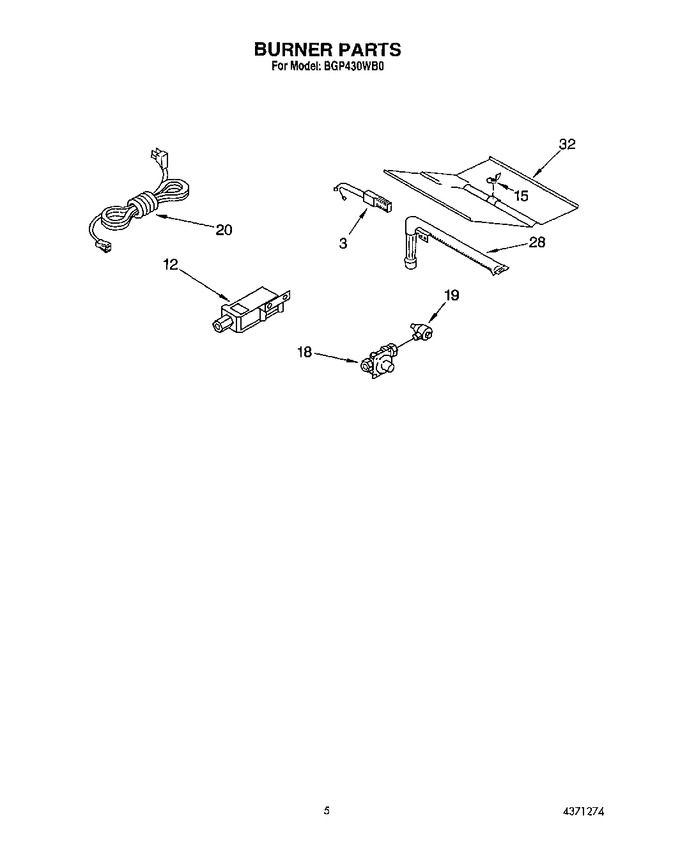

Diagram for BGP430WB0
