SELECT A DIAGRAM

02 - Oven


03 - Control Panel


04 - Burner

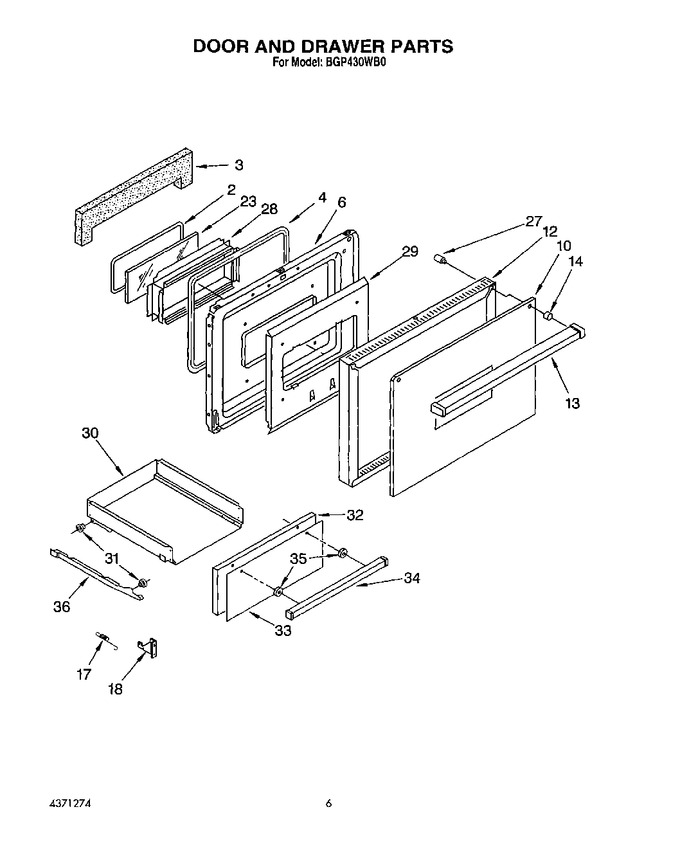

05 - Door And Drawer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	816376		Seal, Window		Appelez-nous	-
3	816450		Insulation, Door		Appelez-nous	-
4	816417		Seal-oven Door		Appelez-nous	-
6	816933		Liner, Door		Appelez-nous	-
6	816270		Screw, No.10x24x5/8 (4)		Appelez-nous	-
10	816833		Glass, Outer Door (black)		Appelez-nous	-
10	816876		Glass, Outer Door (white)		Appelez-nous	-
12	3149333		Screw, No.8x18x1/2 (3)				$ 5.33
12	816840		Frame, Door		Appelez-nous	-
13	816359		Screw, No.10x24x21/4 (2)		Appelez-nous	-
13	816834		Handle, Door		Appelez-nous	-
14	816970		Spacer, Handle		Appelez-nous	-
17	816942		Spring, Broiler (2)		Appelez-nous	-
18	816938		Hinge, Broiler (left Hand)		Appelez-nous	-
18	816937		Hinge, Broiler (right Hand)		Appelez-nous	-
23	816377		Glass, Inner Door		Appelez-nous	-
27	816720		Spacer, Handle		Appelez-nous	-
28	816934		Collar, Glass		Appelez-nous	-
28	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
29	816508		Panel, Airwash		Appelez-nous	-
30	816935		Drawer, Storage		Appelez-nous	-
30	816755		Screw, No.8x18x3/8 (4)		Appelez-nous	-
30	816940		Panel, Bottom Broiler Drawer		Appelez-nous	-
31	816845		Roller		Appelez-nous	-
32	816939		Panel, Inner Door		Appelez-nous	-
33	816842		Panel, Glass		Appelez-nous	-
34	816270		Screw, No.10x24x5/8 (2)		Appelez-nous	-
34	816843		Handle, Door		Appelez-nous	-
35	816941		Spacer, Handle		Appelez-nous	-
36	WP308685		Track, Drawer (screw, No.10x24x1/4 (4))   (Replaces: 308685)			Immediately	$ 7.08
36	816896		Track, Drawer (right Side)		Appelez-nous	-
36	816897		Track, Drawer (left Side)		Appelez-nous	-
36	W10080180		Track, Drawer (nut, No.10 X 24 (4))   (Replaces: 816872)				$ 12.74
	LIT816769		Guide, Use And Care		Appelez-nous	-
	LIT4371274		Repair Parts List		Appelez-nous	-
	LIT816767		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
