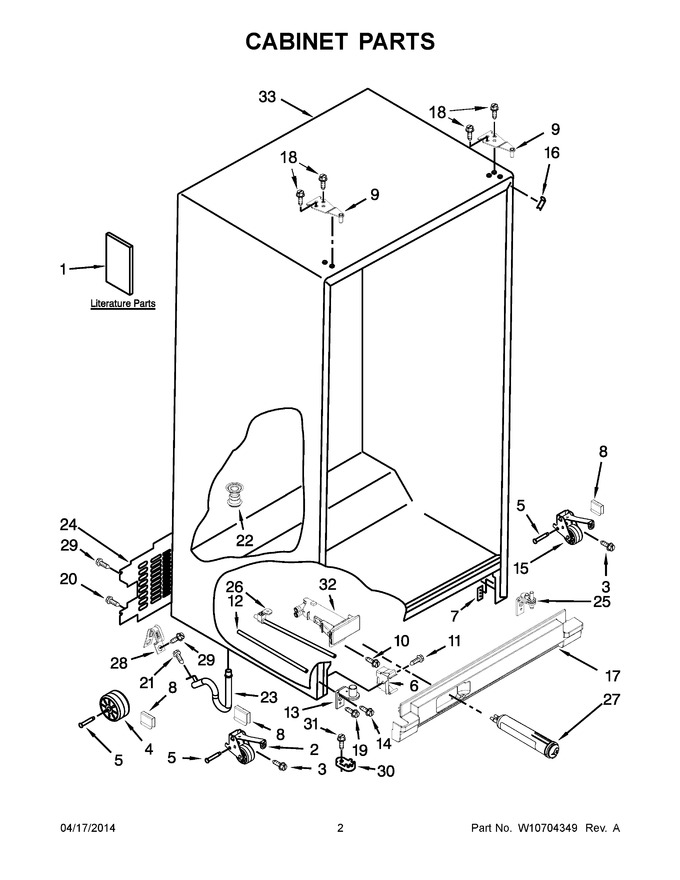

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10691563 | Use & Care Guide |
|
- | |||||
| 1 | W10648680 | Energy Label |
|
- | |||||
| 2 | WPW10304660 | Roller, Front (left) (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | W10803534 | Screw (Replaces: W10651356) |
|
$ 14.24 | |||||
| 4 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 8 | WP2174706 | Clip-roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 9 | W11164088 | Top Hinge (grey) (Replaces: W10400479) |
|
$ 69.66 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 11 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 12 | WPW10350006 | Tube, Filter Outlet (Replaces: W10350006) |
|
$ 121.32 | |||||
| 13 | W10646418 | Hinge Bottom Fc |
|
Immediately | $ 40.67 | ||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | WPW10304659 | Roller, Front (right) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 16 | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 17 | W10393046 | Grille (grey) |
|
$ 52.84 | |||||
| 18 | WPW10308751 | Screw, Black (Replaces: W10308751) |
|
$ 8.84 | |||||
| 19 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 20 | WP488488 | Screw (Replaces: 489290) |
|
$ 8.52 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 24 | 2220757 | Cover, Unit |
|
- | |||||
| 25 | W10646929 | Hinge Bottom Rc |
|
- | |||||
| 26 | WPW10350007 | Tube, Filter Inlet (Replaces: W10350007) |
|
$ 131.73 | |||||
| 27 | W10569758 | Water Filter |
|
$ 0.03 | |||||
| 28 | W11234470 | Clamp, Power Cord (Replaces: W10303628) |
|
$ 22.12 | |||||
| 29 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 30 | W11778262 | Closer, Freezer Door (Replaces: 2223751) |
|
$ 11.63 | |||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 32 | W10862461 | Housing, Water Filter (grey) (Replaces: W10350065) |
|
Immediately | $ 220.05 | ||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- |
