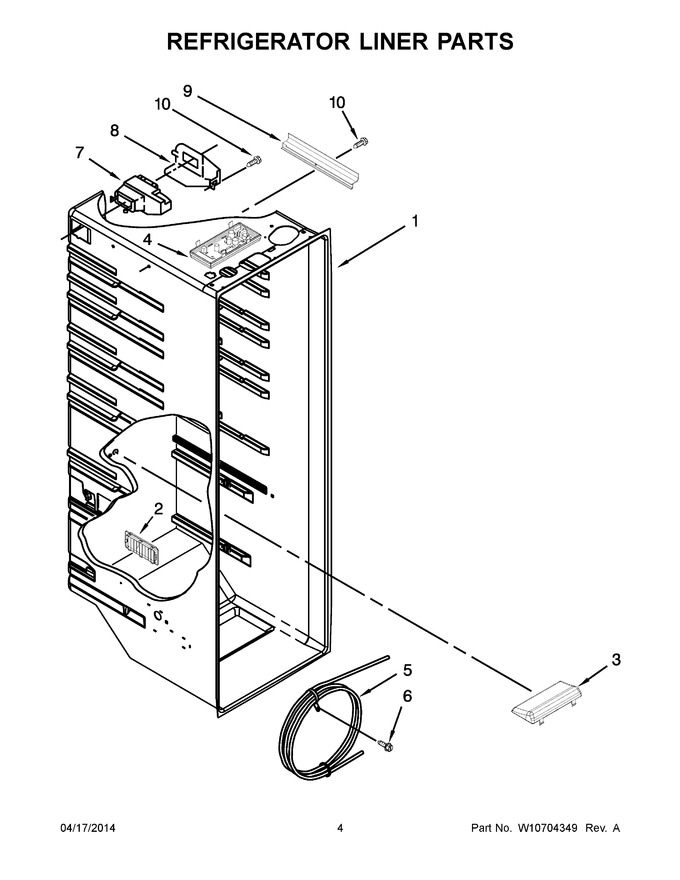

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10550195		Louver		Appelez-nous	-
3	WPW10515057		Led Light Assembly, Tapered Lens   (Replaces: W10515057)			Immediately	$ 47.29
4	WPW10515058		Led Light Assembly, Flat Lens   (Replaces: W10515058)			Immediately	$ 37.12
5	WPW10276792		Reservoir   (Replaces: W10526445)				$ 144.45
6	488280		Screw		Appelez-nous	-
7	WPW10151372		Air Diffuser Assembly   (Replaces: W10151372)				$ 156.41
8	WP2212240		Cover, Air Diffuser   (Replaces: 2212240)				$ 138.15
9	2150331		Cover, Wiring				$ 25.62
10	W10759522		Screw   (Replaces: 486298)				$ 8.24
