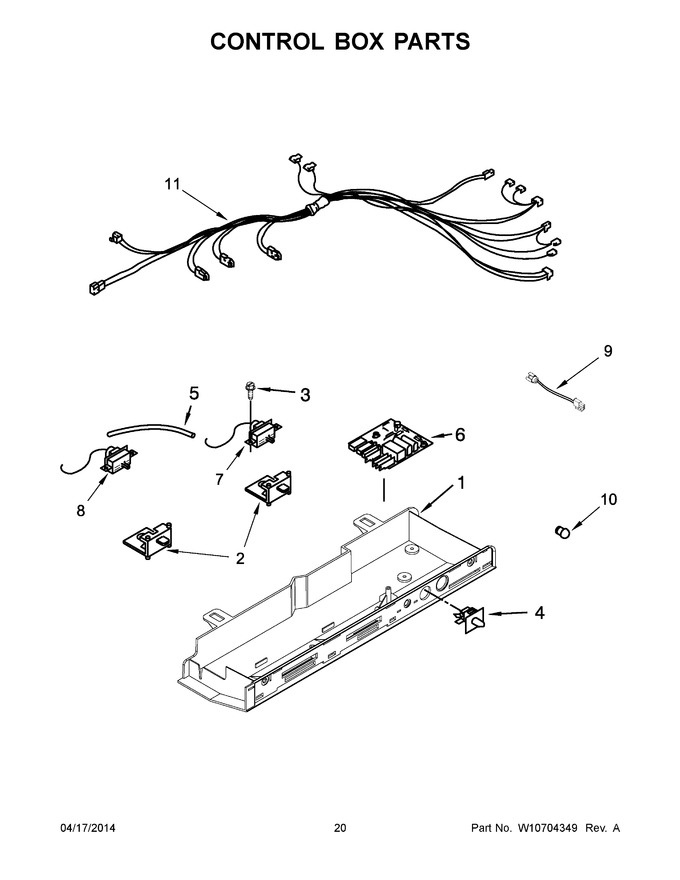

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10590041 | Control Box |
|
- | |||||
| 2 | 2161466 | Slide, Thermostat |
|
$ 22.28 | |||||
| 3 | 2006254 | Screw (Replaces: W10664379) |
|
$ 13.79 | |||||
| 4 | WP2149705 | Switch, Plunger (Replaces: 2149705) |
|
Immediately | $ 45.66 | ||||
| 5 | WP2196003 | Tube, Thermostat Barrier (Replaces: 2182150) |
|
$ 8.35 | |||||
| 6 | WPW10366605 | Adaptive Defrost Control (Replaces: W10366605) |
|
Immediately | $ 312.83 | ||||
| 7 | WPW10320574 | Thermostat (Replaces: W10320574) |
|
$ 278.63 | |||||
| 8 | WP2321289 | Thermostat (freezer) (Replaces: 2321289) |
|
$ 241.70 | |||||
| 9 | W10853646 | Led Light Assembly (Replaces: 2213462) |
|
$ 130.80 | |||||
| 10 | 2200096 | Lens, Light |
|
$ 64.10 | |||||
| 11 | W10592037 | Harness, Control Box |
|
- |
