SELECT A DIAGRAM
01 - Cover Sheet

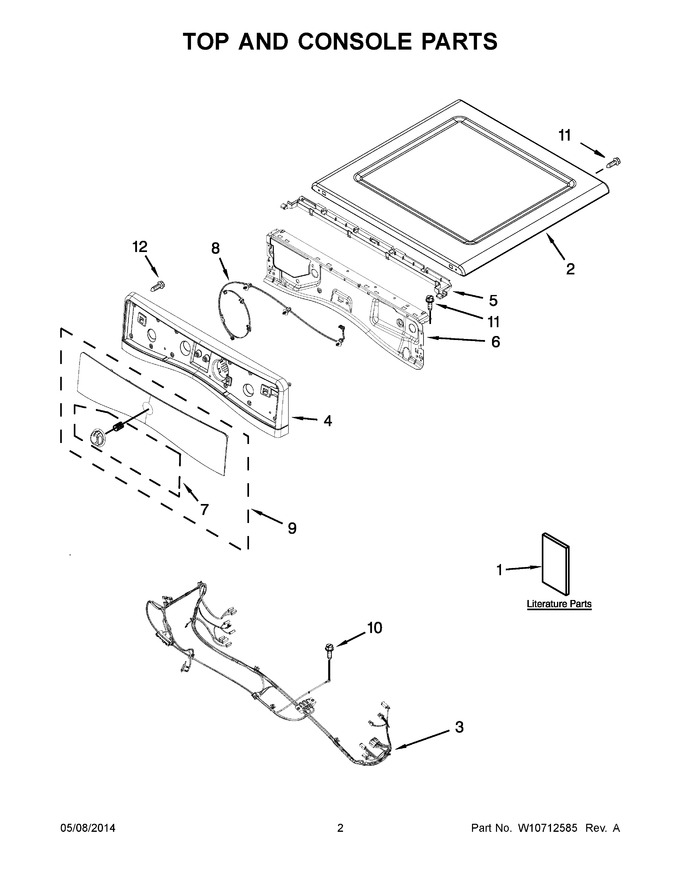

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573715 | Use And Care Guide |
|
- | |||||
| 1 | W10572501 | Tech Sheet |
|
- | |||||
| 1 | W10573709 | Installation Instructions |
|
- | |||||
| 1 | W10504399 | Wiring Diagram |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10526662 | Harness, Wiring (main) |
|
- | |||||
| 4 | WPW10391519 | Panel, Console (white) (Replaces: W10391519) |
|
Immediately | $ 185.80 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10652617 | Assembly, Control Knob (black) |
|
$ 60.76 | |||||
| 8 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 13.27 | ||||
| 9 | W10639916 | Iml Assembly (white) |
|
$ 322.05 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10489172 | Screw |
|
$ 11.98 |
