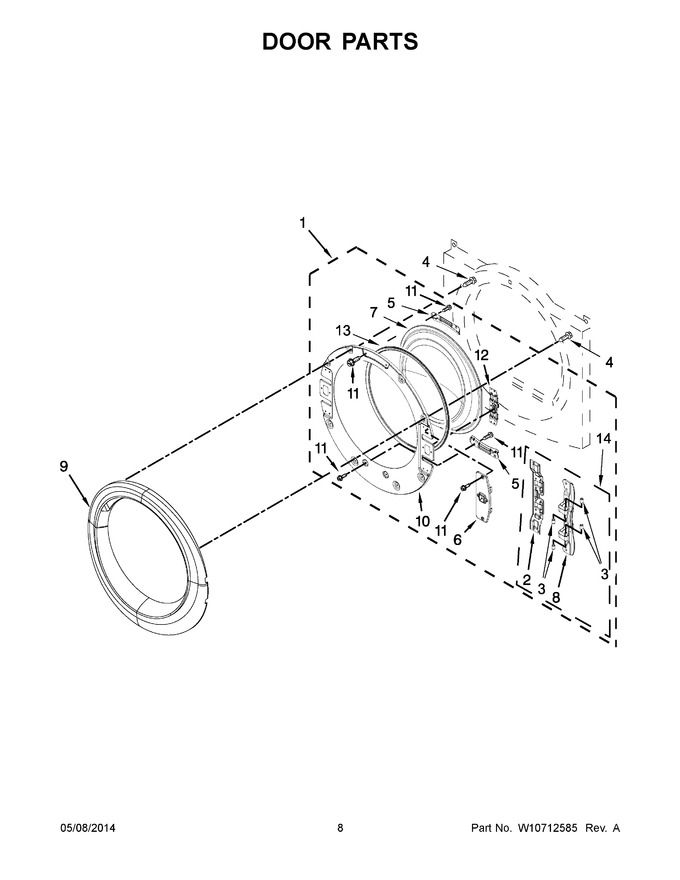

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208266 | Assembly, Inner Door |
|
$ 301.80 | |||||
| 2 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 3 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 21.47 | ||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 5 | W10208252 | Bracket, Glass |
|
- | |||||
| 6 | W10772469 | Cover, Door Catch (Replaces: W10208413) |
|
$ 85.37 | |||||
| 7 | W11310036 | Glass, Door (Replaces: W10208417) |
|
$ 181.59 | |||||
| 8 | WPW10208419 | Plate, Hinge Retainer (Replaces: W10208419) |
|
$ 85.94 | |||||
| 9 | W10424951 | Door, Outer (white) |
|
$ 321.25 | |||||
| 10 | W10267837 | Door, Inner |
|
$ 188.98 | |||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 12 | WPW10208254 | Assembly, Door Catch (Replaces: W10208254) |
|
$ 85.34 | |||||
| 13 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 86.79 | ||||
| 14 | W11051465 | Assembly, Door Hinge (Replaces: W10208414) |
|
Immediately | $ 98.31 |
