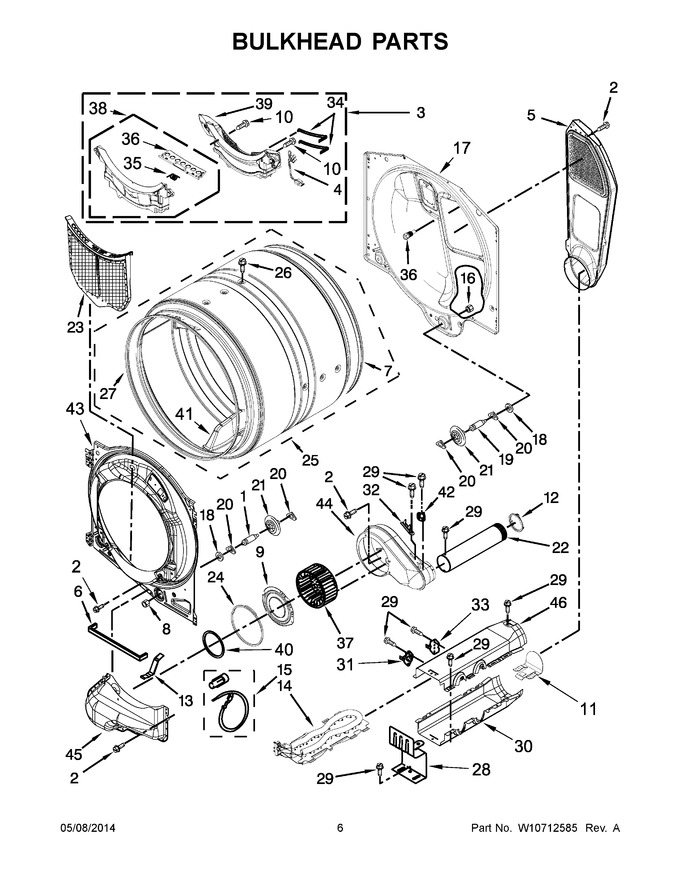

04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 276.56 | ||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WP3387911 | Assembly, Air Duct (Replaces: 697354) |
|
$ 327.31 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10211901 | Assembly, Collar |
|
$ 94.08 | |||||
| 10 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 11 | 8544776 | Flange, Heater Box |
|
$ 19.01 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 13 | W10414388 | Clip, Lint Duct |
|
$ 14.56 | |||||
| 14 | WP8544771 | Element, Heater (Replaces: 8544771) |
|
Immediately | $ 119.29 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 139.40 | ||||
| 23 | W11758174 | Screen, Lint (white) (Replaces: W10516085) |
|
Immediately | $ 52.12 | ||||
| 24 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 25 | W10508188 | Assembly, Drum (complete) |
|
$ 365.09 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 22.62 | ||||
| 28 | 8066099 | Bracket, Heater Box |
|
$ 26.81 | |||||
| 29 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 30 | 8544770 | Housing Tab, Heater Box |
|
$ 75.92 | |||||
| 31 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 32 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 33 | 279973 | Kit, Thermal Cut-off (includes High Limit Thermostat) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 110.26 | |||||
| 36 | W11156832 | Door, Lint Screen (Replaces: W10672680) |
|
Immediately | $ 56.63 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 59.07 | ||||
| 38 | W10905013 | Assembly, Housing And Door (Replaces: W10672681) |
|
$ 226.36 | |||||
| 39 | W11125442 | Grill, Outlet (Replaces: W10672682) |
|
$ 236.44 | |||||
| 40 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 22.39 | |||||
| 41 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 39.96 | |||||
| 42 | WP8557403 | Thermostat, High Limit (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 43 | W10459180 | Bulkhead, Front |
|
$ 357.86 | |||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 45 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 219.70 | |||||
| 46 | WP8544769 | Housing Slot, Heater Box (Replaces: 8544769) |
|
$ 173.90 |
