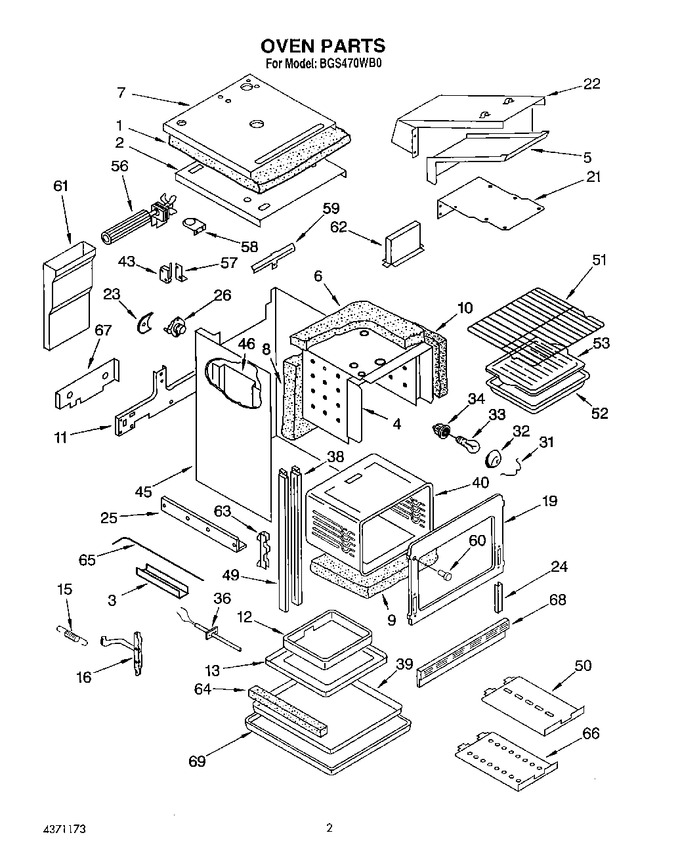

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 816860 | Insulation, Top |
|
- | |||||
| 2 | 816906 | Retainer-oven Top |
|
- | |||||
| 3 | 816885 | Shield, Switch Rod |
|
- | |||||
| 4 | 816888 | Shield, Top And Sides |
|
- | |||||
| 5 | 816852 | Box, Flue |
|
- | |||||
| 6 | 816861 | Insulation |
|
- | |||||
| 7 | 313823 | Screw, No.8x22x5/16 (10) |
|
- | |||||
| 7 | 816909 | Shield, Oven Top |
|
- | |||||
| 8 | 816867 | Insulation, Back |
|
- | |||||
| 9 | 816864 | Insulation, Bottom |
|
- | |||||
| 10 | 816866 | Insulation, Top & Sides |
|
- | |||||
| 11 | 816816 | Bracket, Safety Valve |
|
- | |||||
| 12 | WP308685 | Screw, No.10x24x1/2 (11) (Replaces: 308685) |
|
Immediately | $ 7.08 | ||||
| 12 | 816815 | Box, Burner |
|
- | |||||
| 13 | 816814 | Bottom, Oven |
|
- | |||||
| 15 | 816287 | Spring, Door (2) |
|
- | |||||
| 16 | 816835 | Hinge, Door (2) |
|
- | |||||
| 19 | 816853 | Frame, Front |
|
- | |||||
| 21 | 816889 | Shield, Flue Bottom |
|
- | |||||
| 22 | 816890 | Shield, Flue Top |
|
- | |||||
| 22 | WP488729 | Screw, No.8x20x1/2 (12) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 23 | 816892 | Spring, Support |
|
- | |||||
| 24 | 816893 | Support, Oven Front (2) |
|
- | |||||
| 25 | 816284 | Support, Height Adjustment (2) |
|
- | |||||
| 25 | 816325 | Screw, No.6x32x1/2 (6) |
|
- | |||||
| 26 | 816894 | Switch, Terminal |
|
- | |||||
| 26 | 241428 | Screw, No.10x24x1/2 (2) |
|
- | |||||
| 31 | 816291 | Retainer, Lens |
|
- | |||||
| 32 | 816609 | Lens, Oven Lamp |
|
- | |||||
| 33 | 40A15 | Lamp, Oven (Replaces: 816389) |
|
Immediately | $ 1.98 | ||||
| 34 | W10856866 | Socket, Lamp (Replaces: 816891) |
|
$ 6.80 | |||||
| 36 | 816877 | Sensor |
|
- | |||||
| 36 | 241428 | Screw, No.10x24x1/2 (2) |
|
- | |||||
| 38 | 816900 | Trim, Inner (left Side) |
|
- | |||||
| 38 | 816899 | Trim, Inner (right Side) |
|
- | |||||
| 39 | 816887 | Shield, Insulation (base) |
|
- | |||||
| 40 | 816868 | Liner, Oven |
|
- | |||||
| 43 | 310211 | Screw, No.4x40x1 (2) |
|
- | |||||
| 43 | 816895 | Switch, Oven Light |
|
- | |||||
| 45 | 816905 | Wrapper, Back And Sides |
|
- | |||||
| 46 | 816886 | Shield, Body Sides |
|
- | |||||
| 49 | 816848 | Trim, Outer Side |
|
- | |||||
| 50 | 816881 | Bottom, Oven |
|
- | |||||
| 51 | 816878 | Rack, Oven |
|
- | |||||
| 52 | 816382 | Pan, Broiler |
|
- | |||||
| 53 | 4371169 | Grid, Broiler Pan |
|
- | |||||
| 56 | 816813 | Blower |
|
- | |||||
| 57 | 816822 | Bracket, Switch Mounting |
|
- | |||||
| 58 | 816823 | Bracket, Thermostat |
|
- | |||||
| 58 | 241428 | Screw, No.10x24x1/2 (2) |
|
- | |||||
| 59 | 241428 | Screw, No.10x24x1/2 (3) Insulation |
|
- | |||||
| 59 | 816824 | Bracket, |
|
- | |||||
| 60 | 816608 | Bumper (2) |
|
- | |||||
| 61 | 816846 | Duct, Blower Motor |
|
- | |||||
| 62 | 816851 | Adaptor, Fluebox |
|
- | |||||
| 63 | 816388 | Channel, Hinge (2) |
|
- | |||||
| 64 | 816863 | Insulation, Bottom (front) |
|
- | |||||
| 64 | 816862 | Insulation, Bottom (sides (2)) |
|
- | |||||
| 65 | 816879 | Rod, Switch |
|
- | |||||
| 66 | 816880 | Shield, Lower Oven |
|
- | |||||
| 67 | 816884 | Shield, Housing |
|
- | |||||
| 67 | 241428 | Screw, No.10x24x1/2 (4) |
|
- | |||||
| 68 | 816410 | Screw (2) |
|
- | |||||
| 68 | 816901 | Trim, Base |
|
- | |||||
| 69 | 816883 | Shield, Burner Box |
|
- | |||||
| 69 | 816908 | Shield, Oven Bottom |
|
- | |||||
| 69 | 816387 | Spacer, Oven (2) |
|
- | |||||
| 69 | 816865 | Insulation, Bottom |
|
- | |||||
| 69 | 816869 | Support, Oven Rear |
|
- |
