SELECT A DIAGRAM

02 - Oven


03 - Control Panel

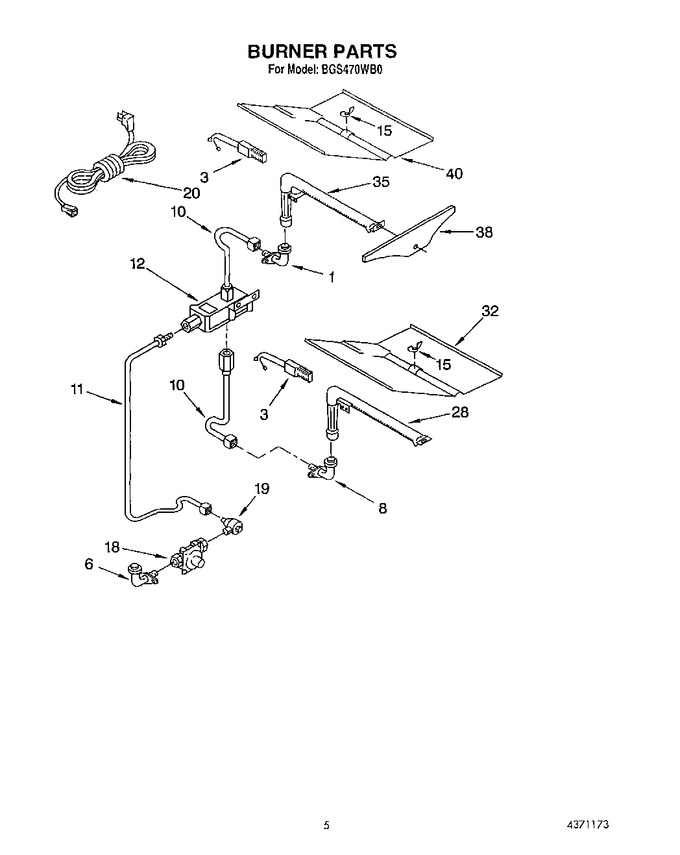

04 - Burner


05 - Door And Drawer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816870		Mixer, Broiler		Appelez-nous	-
3	877919		Igniter (screw, No.8x32x3/8 (2))		Appelez-nous	-
3	816624		Ignitor, Broiler Burner		Appelez-nous	-
3	814269		Igniter (bake Burner)   (Replaces: 816826)				$ 193.20
6	241428		Screw, No.10x24x1/2 (2)		Appelez-nous	-
6	816819		Fitting, Elbow		Appelez-nous	-
8	816820		Elbow, Mixer		Appelez-nous	-
10	816902		Tubing, Mixer		Appelez-nous	-
11	816903		Tubing, Safety Valve		Appelez-nous	-
12	241428		Screw, No.10x24x1/2 (2)		Appelez-nous	-
12	816904		Valve, Safety		Appelez-nous	-
15	816873		Nut, Wing		Appelez-nous	-
18	816817		Regulator		Appelez-nous	-
19	816821		Valve, Shut Off		Appelez-nous	-
20	816818		Cord, Power		Appelez-nous	-
28	816825		Burner, Bake		Appelez-nous	-
32	816810		Baffle, Bake		Appelez-nous	-
35	816828		Burner, Broiler		Appelez-nous	-
38	816882		Shield, Broil Burner		Appelez-nous	-
38	816270		Screw, No.10x24x5/8		Appelez-nous	-
40	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
40	816827		Baffle, Broiler		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
