SELECT A DIAGRAM

02 - Oven

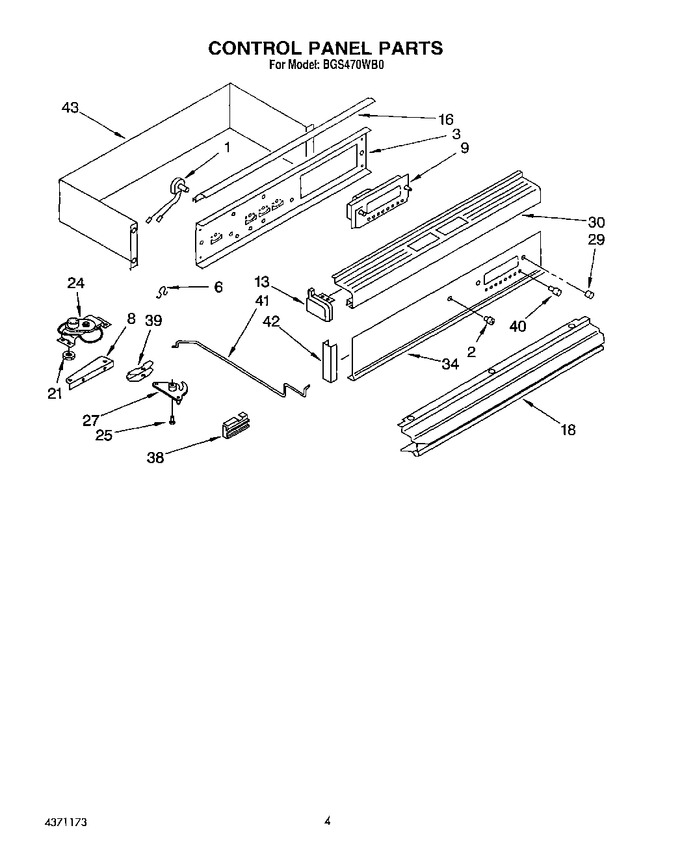

03 - Control Panel


04 - Burner


05 - Door And Drawer, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816963		Switch, Oven Light		Appelez-nous	-
2	816332		Bezel, Switch		Appelez-nous	-
3	241428		Screw, No.10x24x1/2 (4)		Appelez-nous	-
3	816875		Plate, Instrument Mtg.		Appelez-nous	-
6	816812		Fastener, Wire		Appelez-nous	-
8	816811		Base, Latch Motor		Appelez-nous	-
9	816874		Clock/oven Control		Appelez-nous	-
9	786753		Nut, No.6x32 (4)		Appelez-nous	-
9	816302		Screw, No.6x32x1/2		Appelez-nous	-
13	816829		End Cap (right Side)		Appelez-nous	-
13	816830		End Cap (left Side)		Appelez-nous	-
16	487010		Screw, No.6x18x1/4 (3)		Appelez-nous	-
16	816850		Deflector, Heat		Appelez-nous	-
18	816325		Screw, No.6x32x1/2 (4)		Appelez-nous	-
18	816847		Trim, Center Vent		Appelez-nous	-
21	W10080180		Nut, 10 X 24   (Replaces: 816872)				$ 12.74
24	816871		Motor, Lock		Appelez-nous	-
24	241428		Screw, No.10x24x1/2 (3)		Appelez-nous	-
25	4361168		Stud, Latch		Appelez-nous	-
27	4371167		Lever, Lock		Appelez-nous	-
29	816700		Knob, Clock		Appelez-nous	-
30	816849		Trim, Top		Appelez-nous	-
30	816325		Screw, No.6x32x1/2 (6)		Appelez-nous	-
34	816855		Panel, Control		Appelez-nous	-
38	816276		Cover, Latch		Appelez-nous	-
39	816857		Housing, Latch		Appelez-nous	-
40	816693		Knob, Controls (9)		Appelez-nous	-
41	816288		Rod, Latch Support		Appelez-nous	-
42	816898		Trim, Control Panel (2)		Appelez-nous	-
43	313823		Screw, No.8x22x5/16 (8)		Appelez-nous	-
43	816907		Shield, Controls		Appelez-nous	-
