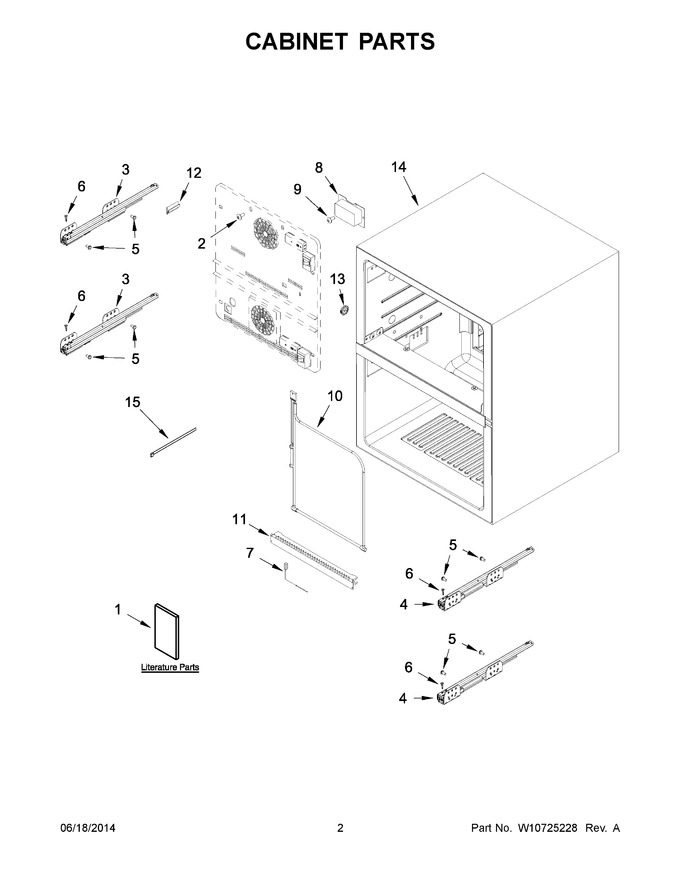

02 - Cabinet Parts


03 - Liner Parts


04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10233837		Service & Wiring Sheet		Appelez-nous	-
1	W10721441		Energy Guide		Appelez-nous	-
1	W10721443		Use & Care Guide		Appelez-nous	-
2	4344793		Screw		Appelez-nous	-
3	W10621521		Rail Assembly, Left Hand				$ 364.94
4	W10621523		Rail Assembly, Right Hand				$ 330.09
5	W10621524		Screw				$ 16.10
6	W10204809		Screw		Appelez-nous	-
7	W10205063		Defrost Sensor				$ 174.60
8	W10304008		Cover		Appelez-nous	-
9	4344826		Screw, Grille				$ 16.70
10	W10721439		Assembly, Thermal Fuse				$ 204.78
11	4344747		Heat Shield				$ 78.49
12	W10204630		Lead Wire Support		Appelez-nous	-
13	W10621514		Liner Bushing				$ 31.71
14	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
15	4344829		Tie, Cable		Appelez-nous	-
