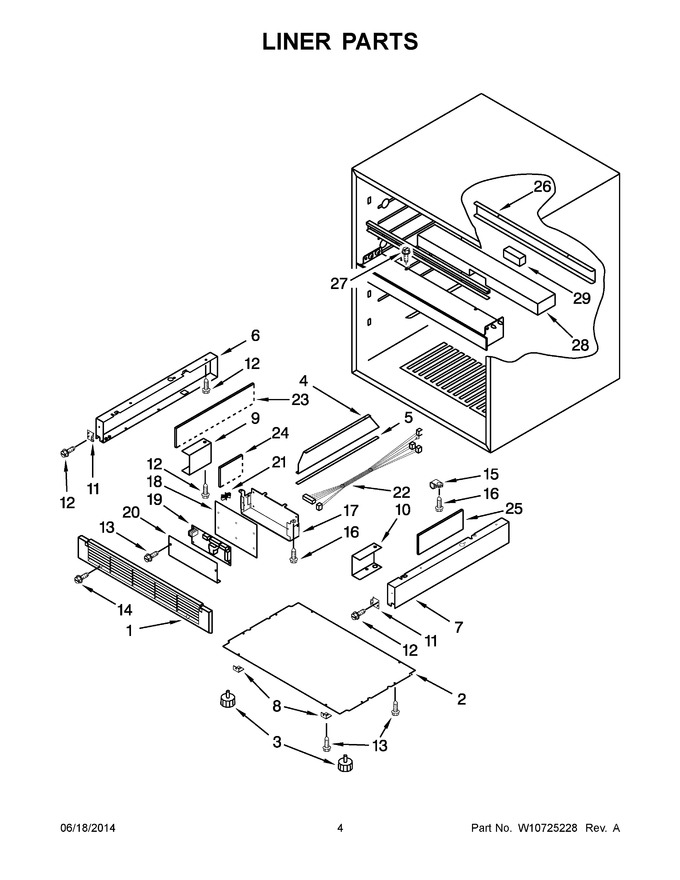

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204635		Kick Plate				$ 192.12
2	4344762		Plate, Bottom		Appelez-nous	-
3	W11106296		Leg. Leveling   (Replaces: 4344763)				$ 19.03
4	W10281495		Auxiliary Plate		Appelez-nous	-
5	4344823		Seal, Brace				$ 101.83
6	W10621525		Side Frame, Left Hand				$ 105.89
7	W10621526		Side Frame, Right Hand				$ 103.92
8	4344771		Bracket, Grille				$ 104.76
9	4344820		Frame, Support (left Hand)		Appelez-nous	-
10	4344821		Frame, Support (right Hand)		Appelez-nous	-
11	W10204640		Kick Plate Mount				$ 79.73
12	4344797		Screw		Appelez-nous	-
13	4344826		Screw, Grille				$ 16.70
14	W10837731		Screw   (Replaces: W10204865)				$ 8.30
15	W10270482		Cable Clamp		Appelez-nous	-
16	4344825		Screw		Appelez-nous	-
17	W10204645		Main Pcb Box		Appelez-nous	-
18	W10204646		Pcb Box Film		Appelez-nous	-
19	W10204648		Main Pcb				$ 465.18
20	W10204647		Cover, Main Pcb		Appelez-nous	-
21	W10204659		Pcb Standoff				$ 59.39
22	W10204663		Power Harness				$ 181.93
23	W10205076		Acoustic Foam B		Appelez-nous	-
24	W10205077		Acoustic Foam C		Appelez-nous	-
25	W10205078		Acoustic Foam A		Appelez-nous	-
26	W10621527		Mullion Case Cover		Appelez-nous	-
27	W10319183		Screw		Appelez-nous	-
28	W10621528		Mullion Insulation		Appelez-nous	-
29	W10205072		Mullion Insulation		Appelez-nous	-
