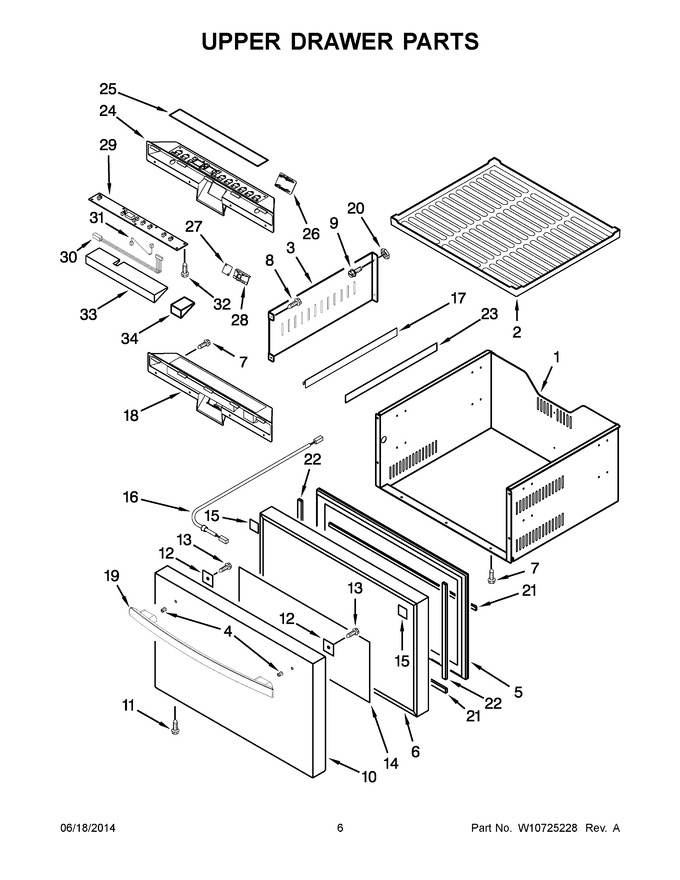

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10622003		Drawer Box Assembly, Upper		Appelez-nous	-
2	W10622004		Mat, Upper Drawer				$ 361.89
3	W10270486		Drawer Partition				$ 299.33
4	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 19.33
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 183.09
6	W10622042		Door Assembly, Upper		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10622044		Overlay Installation Kit				$ 118.10
11	W10319185		Screw		Appelez-nous	-
12	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10204868		Wrap Gap Spacer		Appelez-nous	-
16	W10622011		Harness, Display To Indicator				$ 325.20
17	W10622013		Support, Lead Wire				$ 28.70
18	W10721445		Assembly, Control Panel		Appelez-nous	-
19	W10622019		Handle			Immediately	$ 360.90
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W10721447		Wire Support Tape		Appelez-nous	-
24	W10721449		Cover, Control		Appelez-nous	-
25	W10270518		Label, Panel		Appelez-nous	-
26	W10204929		Lamp Cover				$ 89.18
27	W10204930		Led Lamp				$ 347.60
28	W10204931		Lamp Holder				$ 79.66
29	WPW10721450		Pcb Assembly Display   (Replaces: W10721450)				$ 541.63
30	W10204933		Pcb Harness				$ 176.63
31	W10304194		Lamp Harness   (Replaces: W10204934)		Appelez-nous	-
32	W10204935		Screw, Led		Appelez-nous	-
33	W10622023		Panel Insulation		Appelez-nous	-
34	W10204937		Panel Insulation B		Appelez-nous	-
