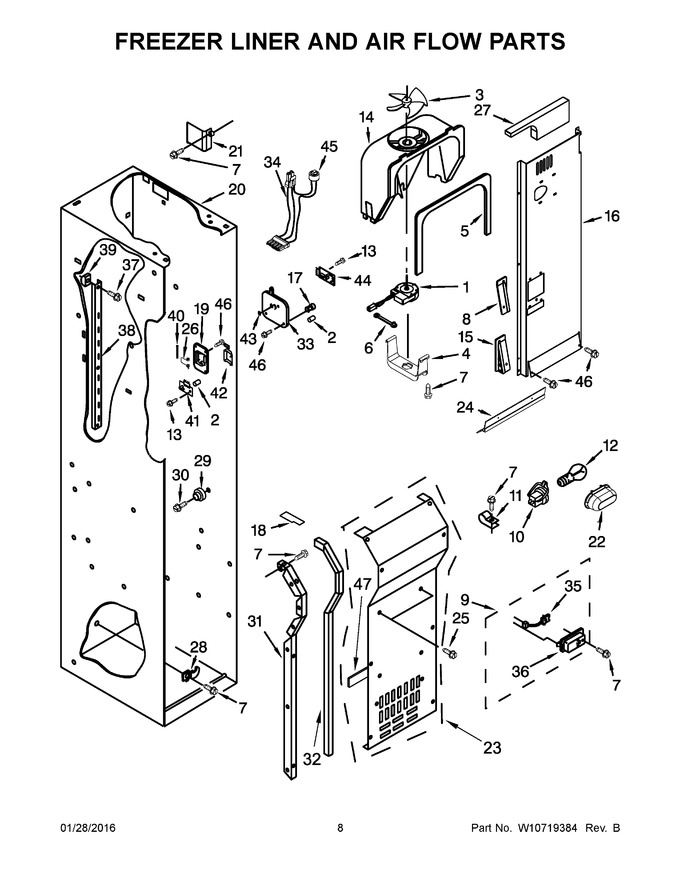

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11671461 |
 |
Motor, Fan (Replaces: W10436861) |
|
|
Immediately |
$ 196.69 |
|
|
| 2 |
2198665 |
 |
Tube, Circuit Board |
|
|
|
$ 21.52 |
|
|
| 3 |
WP2169142 |
 |
Blade, Fan (Replaces: 2169142) |
|
|
Immediately |
$ 43.41 |
|
|
| 4 |
W11671527 |
|
Retainer, Fan Motor (Replaces: W10260421) |
|
|
|
$ 22.86 |
|
|
| 5 |
WP2302817 |
|
Gasket, Scroll Assembly (Replaces: 2302817) |
|
|
|
$ 96.23 |
|
|
| 6 |
W11671528 |
|
Grommet, Motor (Replaces: W10321090) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.02 |
|
|
| 8 |
2259464 |
|
Wedge, Right Air Duct |
|
|
|
$ 90.84 |
|
|
| 9 |
WP2317844 |
|
Assembly, Thermistor (Replaces: 2317844) |
|
|
|
$ 10.84 |
|
|
| 10 |
WPW10191429 |
 |
Socket, Light (Replaces: W10191429) |
|
|
|
$ 8.38 |
|
|
| 11 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 10.99 |
|
|
| 12 |
WPA3073101 |
 |
Bulb, Light (Replaces: 2326255) |
|
|
Immediately |
$ 12.11 |
|
|
| 13 |
2006254 |
|
Screw (Replaces: 489214) |
|
|
|
$ 13.13 |
|
|
| 14 |
WP2182120 |
 |
Scroll, Fan (Replaces: 2182120) |
|
|
Immediately |
$ 111.97 |
|
|
| 15 |
2259465 |
|
Wedge, Left Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 16 |
2307775 |
|
Duct, Air |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP2198643 |
 |
Lens, Receiver (Replaces: 2198643) |
|
|
|
$ 8.18 |
|
|
| 18 |
2209482 |
|
Block, Fan Scroll (right Hand) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
WP2215650 |
|
Cover, Emitter (Replaces: 2215650) |
|
|
|
$ 202.84 |
|
|
| 20 |
N/P |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
2259025 |
|
Cover, Air Outlet |
|
|
|
$ 87.96 |
|
|
| 22 |
2307751 |
|
Shield, Light |
|
|
|
$ 17.27 |
|
|
| 23 |
W10581993 |
|
Assembly, Evaporator Cover |
|
Appelez-nous
|
- |
|
|
|
| 24 |
2302851 |
|
Support, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WP488729 |
 |
Screw (stainless) (Replaces: 487539) |
|
|
Immediately |
$ 7.79 |
|
|
| 26 |
WP2198635 |
 |
Spring, Door (Replaces: 2198635) |
|
|
|
$ 87.08 |
|
|
| 27 |
2309284 |
|
Deflector, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 28 |
1112260 |
|
Support, Evaporator |
|
Appelez-nous
|
- |
|
|
|
| 29 |
WP2196483 |
 |
Stud, Shelf (Replaces: 2196205) |
|
|
|
$ 10.35 |
|
|
| 30 |
W10191952 |
|
Screw |
|
|
|
$ 5.65 |
|
|
| 31 |
2259355 |
|
Rail, Evaporator Cover (right Hand) |
|
|
|
$ 120.51 |
|
|
| 32 |
2220904 |
|
Gasket, Evaporator Cover |
|
|
|
$ 22.43 |
|
|
| 33 |
2259493 |
|
Cover, Receiver |
|
|
|
$ 90.12 |
|
|
| 34 |
W11676572 |
|
Harness, Bi-metal Wire (Replaces: W10482187) |
|
|
|
$ 124.94 |
|
|
| 35 |
WP2306010 |
 |
Thermistor (Replaces: 2306010) |
|
|
Immediately |
$ 98.65 |
|
|
| 36 |
WP2317844 |
|
Cover, Thermistor (Replaces: 2317105) |
|
|
|
$ 10.84 |
|
|
| 37 |
2006475 |
|
Screw (white) |
|
Appelez-nous
|
- |
|
|
|
| 38 |
WP2259032 |
|
Ladder, Shelf (Replaces: 2259032) |
|
|
|
$ 77.16 |
|
|
| 39 |
2259445 |
|
Support, Ladder |
|
Appelez-nous
|
- |
|
|
|
| 40 |
WP2198634 |
 |
Pin, Door (Replaces: 2198634) |
|
|
|
$ 17.76 |
|
|
| 41 |
W11629974 |
 |
Board, Emitter Circuit (Replaces: W10193840) |
|
|
Immediately |
$ 401.07 |
|
|
| 42 |
WP2198633 |
 |
Flipper, Shut Off (Replaces: 2198633) |
|
|
Immediately |
$ 48.27 |
|
|
| 43 |
2255563 |
|
Slide, Icemaker Shut Off |
|
|
|
$ 79.74 |
|
|
| 44 |
W11629974 |
|
Board, Receiver Circuit (Replaces: W10290817) |
|
|
Immediately |
$ 401.07 |
|
|
| 45 |
WPW10160570 |
 |
Bi-metal, Defrost (Replaces: W10160570) |
|
|
Immediately |
$ 132.36 |
|
|
| 46 |
WPW10142283 |
|
Screw (white) (Replaces: W10142283) |
|
|
|
$ 9.84 |
|
|
| 47 |
W10581989 |
|
Gasket, Evaporator Cover |
|
Appelez-nous
|
- |
|
|
|
| 18A |
2209066 |
|
Block, Fan Scroll (left Hand) |
|
Appelez-nous
|
- |
|
|
|
| 31A |
2221107 |
|
Rail, Evaporator Cover (left Hand) |
|
Appelez-nous
|
- |
|
|
|
