SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Motor And Ice Container Parts


07 - Control Panel Parts


08 - Refrigerator Shelf Parts


09 - Freezer Shelf Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Parts


13 - Top Grille And Unit Cover Parts


14 - Upper Unit Parts


15 - Lower Unit And Tube Parts


16 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222970		Bin, Ice   (Replaces: 2222970)			Immediately	$ 250.15
2	W10692205		Ice Container Assembly				$ 339.66
3	WP2252265		Button, Bin   (Replaces: 2252265)				$ 44.32
4	W10134785		Latch, Bin				$ 105.68
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.19
6	2198671		Screw (stainless)				$ 10.40
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.19
8	WP2188919		Clip, Shaft   (Replaces: 2188919)				$ 7.19
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 11.97
10	WP2318082		Shaft, Drive   (Replaces: 2318082)				$ 99.42
11	W11404931		Enclosure, Motor   (Replaces: 2318011)			Immediately	$ 65.25
12	2315547		Motor, Dispenser		Appelez-nous	-
13	2318028		Cover				$ 102.66
14	WP2315559		Sleeve, Bearing   (Replaces: 2315559)			Immediately	$ 81.34
15	WPW10254073		Washer   (Replaces: W10254073)			Immediately	$ 10.10

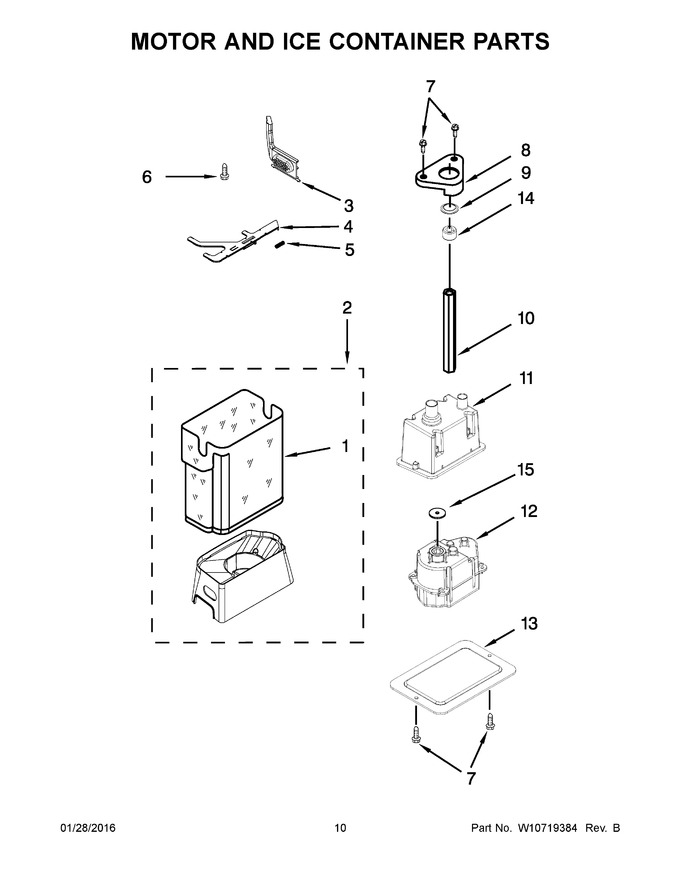

    View Diagram in Separate Window       Print Part List
