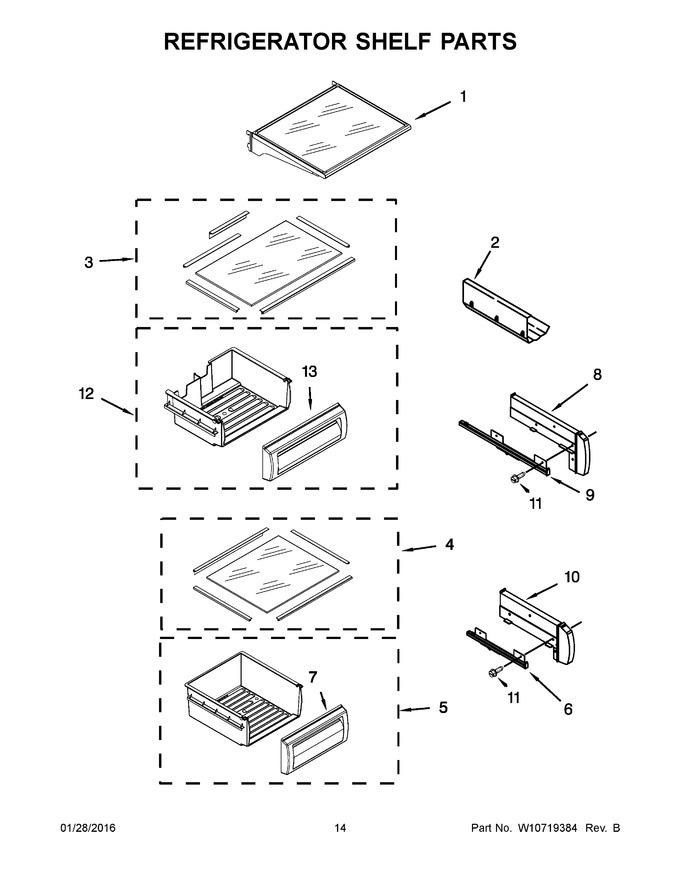

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP2222593 |
|
Assembly, Fixed Shelf (Replaces: 2222593) |
|
|
|
$ 320.16 |
|
|
| 2 |
W10777924 |
 |
Rack, Wine (Replaces: 2179404) |
|
|
|
$ 24.78 |
|
|
| 3 |
2302843 |
|
Assembly, Meat Pan Cover |
|
Appelez-nous
|
- |
|
|
|
| 4 |
2302836 |
|
Assembly, Crisper Cover |
|
|
|
$ 126.39 |
|
|
| 5 |
W10407625 |
|
Assembly, Crisper Pan |
|
|
|
$ 178.12 |
|
|
| 6 |
2302955 |
|
Slide, Meat Pan (right Hand) |
|
|
|
$ 343.18 |
|
|
| 7 |
W10407625 |
|
Front, Crisper Pan (Replaces: 2256249) |
|
|
|
$ 178.12 |
|
|
| 8 |
2256222 |
|
Spacer, Crisper (right Hand) |
|
|
|
$ 89.24 |
|
|
| 9 |
2302957 |
|
Slide, Crisper (right Hand) |
|
|
|
$ 228.33 |
|
|
| 10 |
2256244 |
|
Spacer, Meat Pan (right Hand) |
|
|
|
$ 103.70 |
|
|
| 11 |
W11830745 |
|
Screw (stainless) (right Hand) (Replaces: 8533929) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
W10407628 |
|
Assembly, Meat Pan |
|
|
|
$ 170.93 |
|
|
| 13 |
WP2256367 |
|
Assembly, Meat Pan Front (Replaces: 2256367) |
|
|
|
$ 182.76 |
|
|
| 10A |
2256243 |
|
Spacer, Meat Pan (left Hand) |
|
|
|
$ 83.04 |
|
|
| 11A |
WP8533928 |
 |
Screw (left Hand) (Replaces: 8533928) |
|
|
Immediately |
$ 8.26 |
|
|
| 6A |
2302954 |
|
Slide, Meat Pan (left Hand) |
|
|
|
$ 343.49 |
|
|
| 8A |
2256223 |
|
Spacer, Crisper (left Hand) |
|
|
|
$ 84.49 |
|
|
| 9A |
2302956 |
|
Slide, Crisper (left Hand) |
|
|
|
$ 298.73 |
|
|
