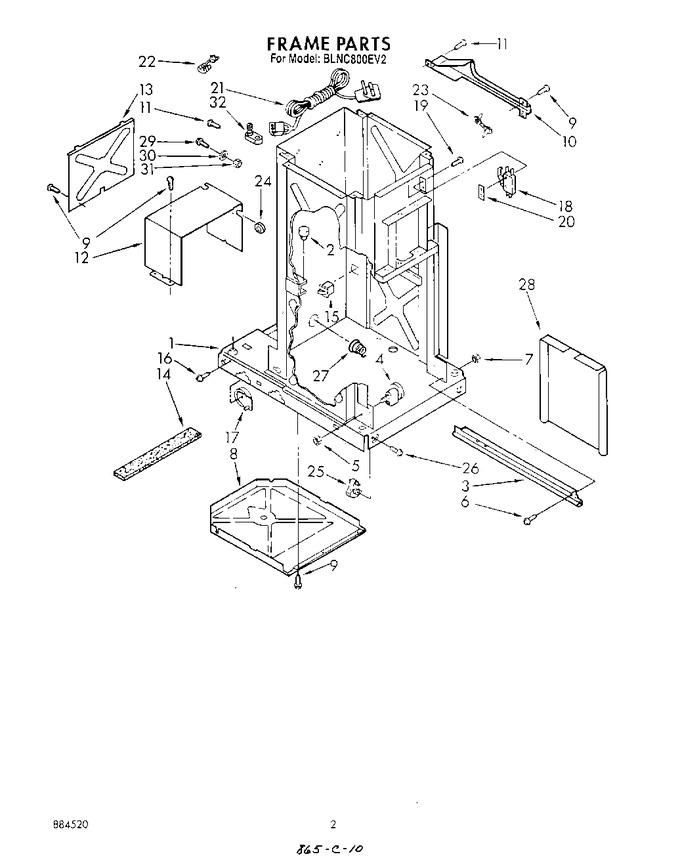

02 - Frame Parts
03 - Powerscrew & Ram Parts
04 - Container Parts
05 - Panel & Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Frame (not A Serviceable Part) |
|
- | |||||
| 2 | 775643 | Bumper (4) |
|
- | |||||
| 3 | 00608090 | Frame, Slide (r.h.) (Replaces: 608090) |
|
$ 47.22 | |||||
| 3 | 00608091 | Frame, Slide (l.h.) (Replaces: 608091) |
|
$ 48.96 | |||||
| 4 | 882688 | Bearing, Roller (2) (Replaces: 4153788) |
|
$ 21.19 | |||||
| 5 | WP776356 | Locknut, 3/8-24 (2) (Replaces: 776356) |
|
$ 8.53 | |||||
| 6 | WP486754 | Screw, 6-32 X 3/8 (4) (Replaces: 777458) |
|
$ 8.01 | |||||
| 7 | 776188 | Nut, 6-32 (4) |
|
- | |||||
| 8 | WP780437 | Pan Assembly (Replaces: 608022) |
|
$ 316.61 | |||||
| 9 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 10 | 4149659 | Shield, Harness |
|
- | |||||
| 11 | WP488234 | Screw, 8-32 X 5/16 (Replaces: 777070) |
|
$ 7.08 | |||||
| 12 | 608849 | Cover, Motor |
|
- | |||||
| 13 | 608009 | Plate, Motor Cover |
|
$ 39.79 | |||||
| 14 | 776780 | Barrier, Glass |
|
- | |||||
| 15 | W11243179 | Switch, Drawer Safety (Replaces: 4149377) |
|
$ 74.74 | |||||
| 16 | WP3351614 | Screw, 10-24 X 3/3 (2) (Replaces: 780034) |
|
Immediately | $ 7.30 | ||||
| 17 | W11023674 | Wheel, L.h. (Replaces: 780137) |
|
$ 54.05 | |||||
| 17 | 780139 | Wheel, R.h. |
|
- | |||||
| 18 | WP777811 | Switch, Top Limit & Directional (Replaces: 777811) |
|
Immediately | $ 116.62 | ||||
| 19 | 777849 | Screw, 6-20 X 1 (2) |
|
$ 7.36 | |||||
| 20 | 777850 | Plate, Nut |
|
$ 77.13 | |||||
| 21 | 778583 | Cord, Power |
|
- | |||||
| 22 | 776519 | Bushing, Cord |
|
- | |||||
| 23 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 24 | W11679167 | Grommet, Motor Cover (Replaces: 776118) |
|
- | |||||
| 25 | 780082 | Leveler (2) |
|
- | |||||
| 26 | 780125 | Screw, 10-16 X 3/4 (2) |
|
- | |||||
| 27 | WP777180 | Spring, Container (Replaces: 777180) |
|
$ 97.93 | |||||
| 28 | 780412 | Panel, Inner (2) |
|
- | |||||
| 29 | 776516 | Screw, 10-24 X 1 |
|
- | |||||
| 30 | 138479 | Washer |
|
- | |||||
| 31 | 776515 | Nut |
|
- | |||||
| 32 | 236278 | Lug, Grounding |
|
- |
