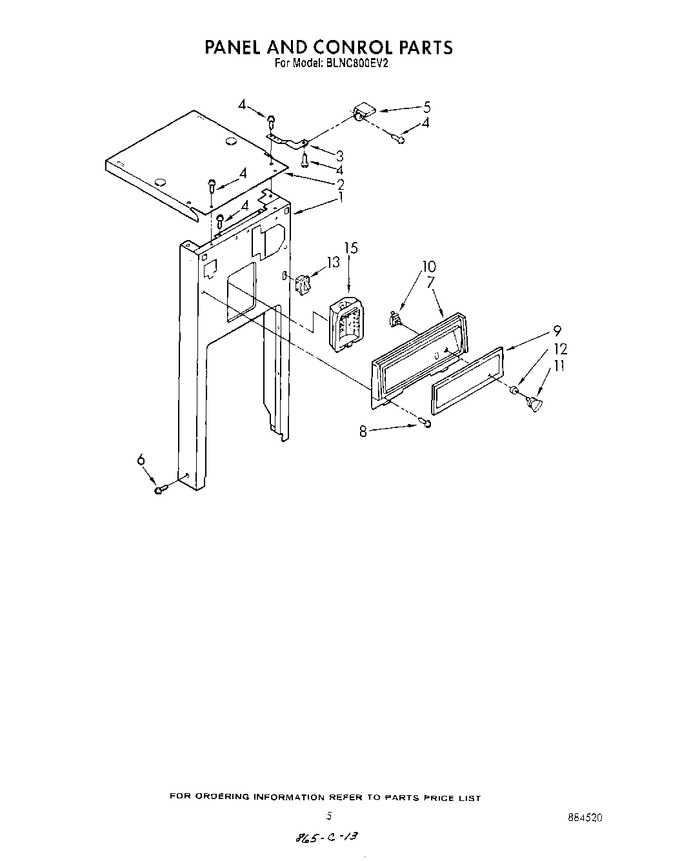

05 - Panel & Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4152069 | Panel, Front Frame |
|
- | |||||
| 2 | W11684543 | Cover, Frame Top (Replaces: 608572) |
|
- | |||||
| 3 | W11729437 | Bracket, Retainer (r.h.) (Replaces: 780464) |
|
Immediately | $ 24.48 | ||||
| 3 | W11729437 | Bracket, Retainer (l.h.) (Replaces: 780465) |
|
Immediately | $ 24.48 | ||||
| 4 | WP302868 | Screw, 8-18 X 1/2 (Replaces: 780138) |
|
Immediately | $ 8.18 | ||||
| 5 | WP780239 | Bracket, Mounting (2) (auxiliary) (Replaces: 780239) |
|
$ 28.53 | |||||
| 6 | WP489069 | Screw, 8 X 1/2ab (6) (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 7 | 780050 | Escutcheon, Control |
|
- | |||||
| 8 | 776559 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 9 | 4151178 | Insert, Escutcheon |
|
- | |||||
| 10 | 675382 | Switch, Rotary Start-run (Replaces: 780379) |
|
$ 246.48 | |||||
| 11 | 776594 | Knob, Rotary Switch |
|
$ 30.27 | |||||
| 12 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 12.83 | |||||
| 13 | WP4387911 | Switch, Drawer Tilt (Replaces: 4152058) |
|
Immediately | $ 41.64 | ||||
| 15 | 608533 | Compartment, Deodorant |
|
- |
