SELECT A DIAGRAM

01 - Motor And Drive Parts, Literature And Optional


02 - Frame Parts


03 - Powerscrew & Ram Parts

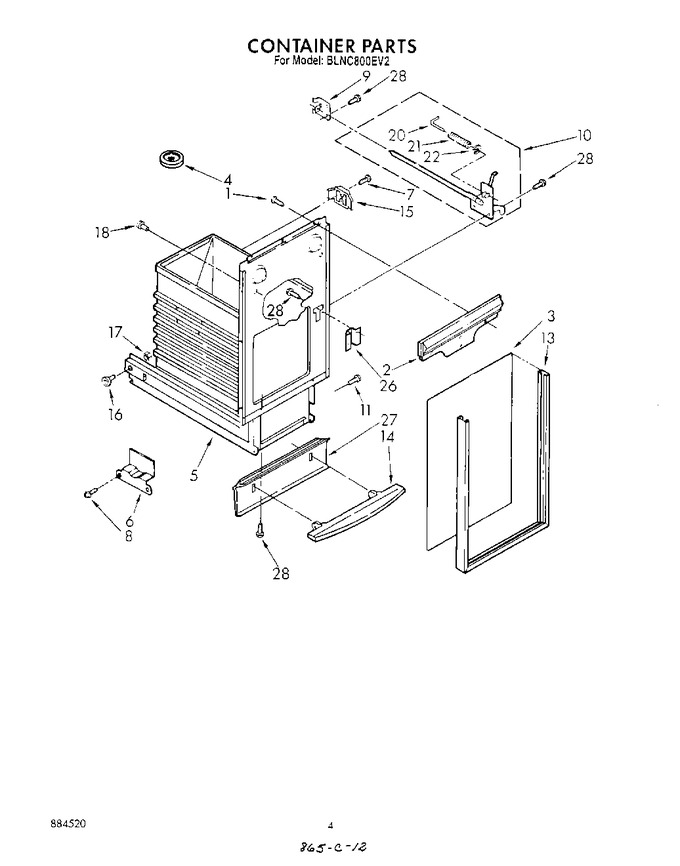

04 - Container Parts


05 - Panel & Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
2	WP608732		Handle, Container   (Replaces: 608732)				$ 264.39
3	777941		Panel, Front (white & Black)				$ 36.40
4	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
5	882666		Container Assembly		Appelez-nous	-
6	776523		Retainer, Bag Handle				$ 21.17
7	4149395		Screw (2)		Appelez-nous	-
8	WP489069		Screw, 8-18 X 1/2 (4)   (Replaces: 777465)			Immediately	$ 8.40
9	WP776395		Guide, Rear Latch   (Replaces: 4154702)				$ 98.10
10	675379		Latch Assembly   (Replaces: 4152273)				$ 182.53
11	WP780263		Screw, No.8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
13	777345		Trim, Container		Appelez-nous	-
14	W11679165		Pedal, Foot   (Replaces: 4149672)				$ 62.46
15	9871125		Actuator, Saftey Switch   (Replaces: 4149378)				$ 29.37
16	WP9871602		Bearing Roller Container (2)   (Replaces: 776261)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	775785		Bumper, Container (2)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
26	775665		Plate, Latch				$ 62.39
27	WPW10242557		Guard, Toeplate   (Replaces: 777328)				$ 142.53
28	WP489069		Screw, 8 X 1/2   (Replaces: 776076)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
