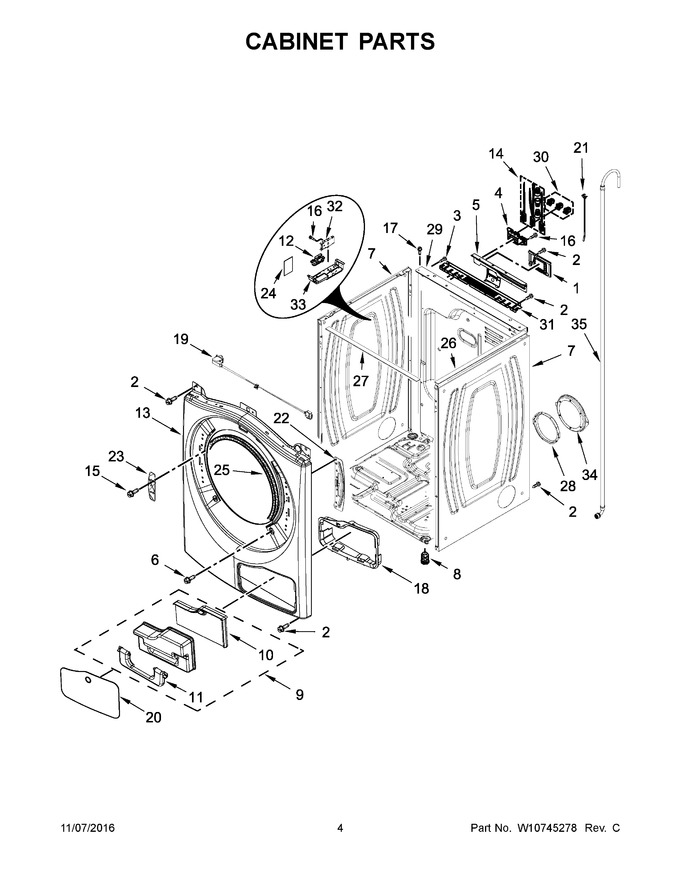

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 104.04 | |||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | W10668463 | Bracket, Terminal Cross Bar |
|
- | |||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | W10897401 | Assembly, Secondary Lint Box (Replaces: W10739611) |
|
Immediately | $ 285.51 | ||||
| 10 | W11199484 | Filter, Secondary Lint (Replaces: W10739605) |
|
Immediately | $ 106.10 | ||||
| 11 | W10673059 | Assembly, Handle - Secondary Lint |
|
- | |||||
| 12 | WPW10652285 | Rex Expansion Board (Replaces: W10652285) |
|
Immediately | $ 342.39 | ||||
| 13 | W10682653 | Front Panel (white) |
|
$ 309.73 | |||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 16 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 17 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 18 | W10739602 | Bezel, Secondary Lint Assembly (white) |
|
Immediately | $ 98.16 | ||||
| 19 | WPW10350906 | Assembly, Door Switch (Replaces: W10350906) |
|
Immediately | $ 81.49 | ||||
| 20 | W11168387 | Door, Secondary Lint (white) (Replaces: W10739598) |
|
Immediately | $ 97.95 | ||||
| 21 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 22 | W10208218 | Bracket, Door Hinge |
|
$ 15.16 | |||||
| 23 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 24 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | W10686117 | Seal - Strip |
|
- | |||||
| 27 | W10608849 | Seal - Strip |
|
$ 25.15 | |||||
| 28 | W10652607 | Gasket, Fan |
|
- | |||||
| 29 | W10524494 | Panel, Rear |
|
$ 299.23 | |||||
| 30 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 31 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 32 | W11038309 | Control Board (Replaces: W10741138) |
|
Immediately | $ 538.25 | ||||
| 33 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 34 | W10688000 | Fan Guard Assembly |
|
- | |||||
| 35 | W11169712 | Hose, Outlet (Replaces: W10705660) |
|
Immediately | $ 82.70 | ||||
| 13A | W11103937 | Front Panel (chrome Shadow) (Replaces: W10678960) |
|
- | |||||
| 18A | W10739601 | Bezel, Secondary Lint Assembly (chrome Shadow) |
|
$ 222.99 | |||||
| 20A | W10739597 | Door, Secondary Lint (chrome Shadow) |
|
$ 130.61 | |||||
| 7A | W11315726 | Panel, Side (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 321.64 | ||||
| NI | W10333355 | Foot, Optional (extended Length) (not Included) |
|
- |
