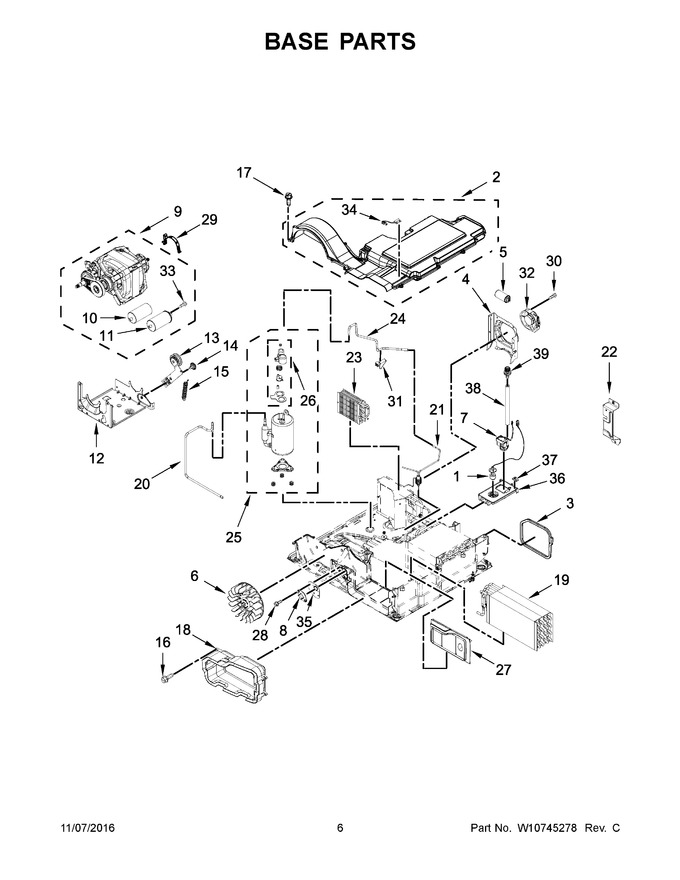

04 - Base Parts
05 - Bulkhead Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11110114 | Sensor Assembly, Water Level (Replaces: W10608846) |
|
$ 189.53 | |||||
| 2 | W10608831 | Cover, Heat Exchange |
|
$ 229.72 | |||||
| 3 | W10459416 | Seal Strip |
|
$ 37.54 | |||||
| 4 | W10646942 | Housing, Auxillary Fan |
|
- | |||||
| 5 | W10724418 | Capacitor, Compressor |
|
$ 78.63 | |||||
| 6 | W11573366 | Blower Wheel (Replaces: W10364994) |
|
Immediately | $ 76.07 | ||||
| 7 | W10903190 | Assembly, Sump Pump (Replaces: W10608847) |
|
Immediately | $ 337.13 | ||||
| 8 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 9 | W11209428 | Assembly, Motor Capacitor (Replaces: W10651995) |
|
Immediately | $ 405.52 | ||||
| 10 | W11846999 | Capacitor, Motor Start (Replaces: W10442513) |
|
Immediately | $ 33.96 | ||||
| 11 | W10724414 | Capacitor, Motor Run |
|
$ 95.87 | |||||
| 12 | W10578065 | Bracket, Motor |
|
$ 177.81 | |||||
| 13 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 14 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 15 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 17 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 18 | W10897399 | Lint Housing Extension (Replaces: W10647273) |
|
Immediately | $ 112.53 | ||||
| 19 | W11406520 | Evaporator (Replaces: W10585610) |
|
$ 302.59 | |||||
| 20 | W10585598 | Suction Tube, Compressor/evaporator |
|
$ 79.46 | |||||
| 21 | W10585594 | Filter, Dryer |
|
$ 282.92 | |||||
| 22 | W10645092 | Bracket, Valve |
|
$ 104.28 | |||||
| 23 | W11406521 | Condensor, Auxillary (Replaces: W10585599) |
|
$ 166.83 | |||||
| 24 | W10872117 | Tube Assembly, Discharge (Replaces: W10585621) |
|
- | |||||
| 25 | W10540767 | Compressor |
|
Immediately | $ 399.18 | ||||
| 26 | W10834235 | Thermo-switch Assembly |
|
$ 339.51 | |||||
| 27 | W11715723 | Filter, Service (Replaces: W10754439) |
|
Immediately | $ 87.99 | ||||
| 28 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 29 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 30 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 31 | W10834236 | Ntc Sensor (Replaces: W10585622) |
|
$ 82.27 | |||||
| 32 | W11342035 | Fan, Compressor (Replaces: W10585613) |
|
Immediately | $ 333.56 | ||||
| 33 | W10759923 | Nut (Replaces: W10604214) |
|
$ 8.35 | |||||
| 34 | W10651558 | Switch, Lint Screen |
|
$ 141.09 | |||||
| 35 | W10574749 | Bracket, Thermister |
|
- | |||||
| 36 | W10574747 | Cover Assembly, Cover |
|
$ 121.75 | |||||
| 37 | W11501419 | Clip, Tube (Replaces: W10352217) |
|
Immediately | $ 12.10 | ||||
| 38 | W10683172 | Hose, Cross Flow (black) |
|
$ 39.42 | |||||
| 39 | W11307123 | Connector, Drain Hose (Replaces: W10730733) |
|
$ 76.32 |
