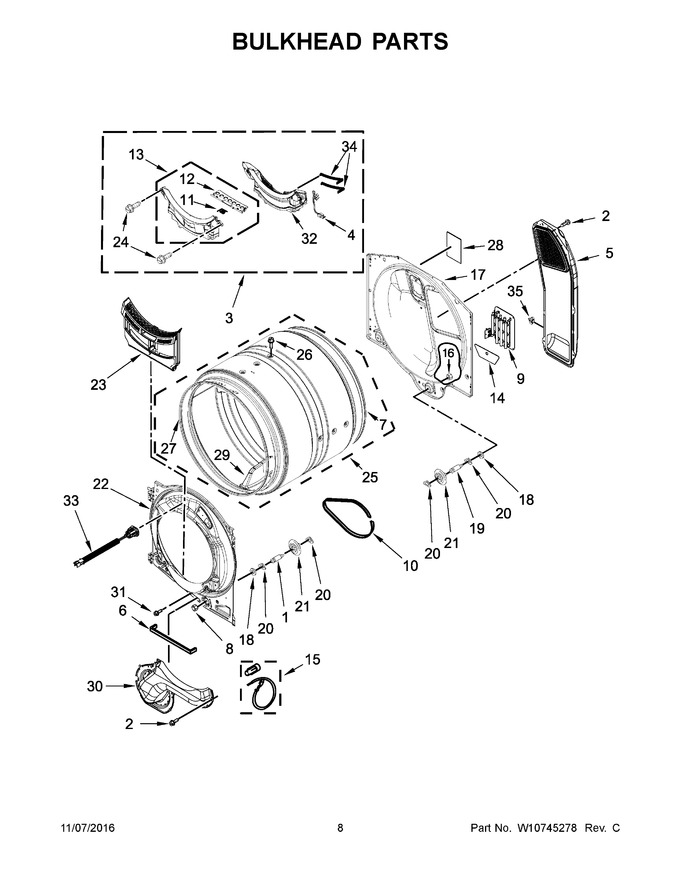

05 - Bulkhead Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11211470 | Assembly, Outlet Grill & Housing (Replaces: W10539315) |
|
Immediately | $ 131.05 | ||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | W10660495 | Assembly, Inlet Duct |
|
- | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W11678121 | Assembly, Inlet-heater Duct (Replaces: W10643339) |
|
Immediately | $ 328.02 | ||||
| 10 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 11 | W10834437 | Spring, Lint Screen Door |
|
$ 25.25 | |||||
| 12 | W11156832 | Door, Lint Screen (Replaces: W10219016) |
|
Immediately | $ 56.63 | ||||
| 13 | W10670373 | Assembly, Door Housing Outlet |
|
$ 225.21 | |||||
| 14 | W10709255 | Edge Cover, Inlet Duct |
|
- | |||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 367.62 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | W10673491 | Bulkhead, Front |
|
Immediately | $ 362.00 | ||||
| 23 | W11483547 | Assembly, Filter - Primary Lint (Replaces: W10752678) |
|
Immediately | $ 94.97 | ||||
| 24 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 25 | W10541657 | Assembly, Drum (complete) |
|
Immediately | $ 539.54 | ||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 22.62 | ||||
| 28 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 23.76 | |||||
| 29 | W10280771 | Baffle, Drum |
|
Immediately | $ 115.32 | ||||
| 30 | W10642437 | Lint Duct |
|
$ 298.40 | |||||
| 31 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 32 | W10684400 | Outlet Grill |
|
$ 239.42 | |||||
| 33 | W10460935 | Assembly, Drum Light |
|
$ 77.97 | |||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W11676807 | Thermostat (Replaces: W10732729) |
|
Immediately | $ 38.24 |
