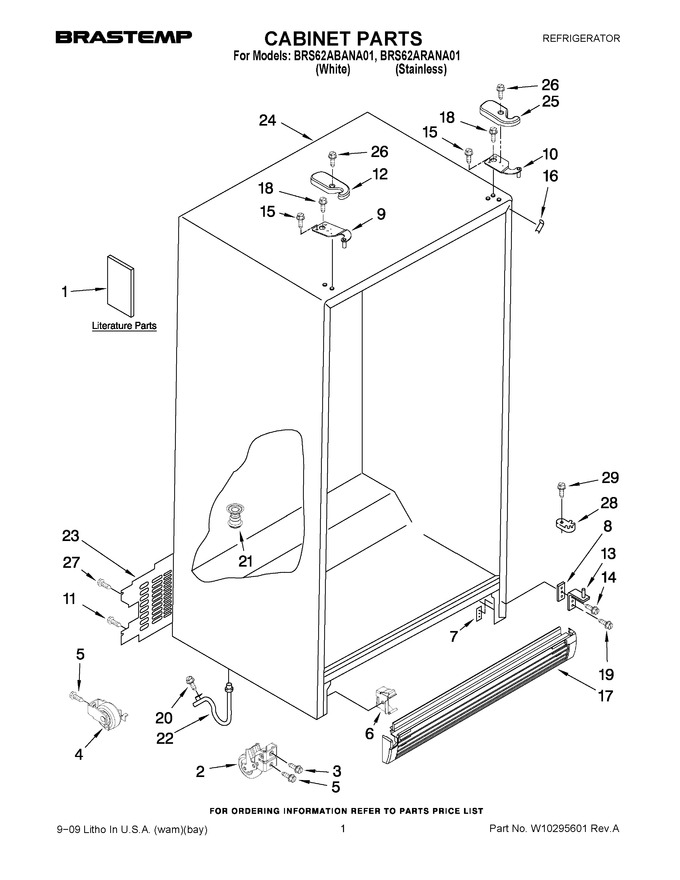

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10122924 | Energy Label |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10139528 | Use & Care Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: W10250570) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP2304249 | Screw Plate (2) (Replaces: 2304249) |
|
$ 14.23 | |||||
| 8 | 2209697 | Shim (2) |
|
$ 41.25 | |||||
| 9 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 95.52 | |||||
| 10 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 98.22 | |||||
| 11 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 12 | 2203407AP | Hinge Cover (apollo Grey) |
|
- | |||||
| 12 | WP2203407W | Hinge Cover (white) (Replaces: 2203407W) |
|
$ 20.75 | |||||
| 13 | 2312043 | Hinge Bottom (2) |
|
- | |||||
| 14 | WP489497 | Screw (4) (Replaces: W10029670) |
|
Immediately | $ 29.09 | ||||
| 15 | 3400858 | Screw |
|
- | |||||
| 16 | W10851579 | Filler Wrapper (apollo Grey) (Replaces: 2254507) |
|
Immediately | $ 7.19 | ||||
| 16 | WPW10283959 | Filler, Wrapper (white) (Replaces: 2201014) |
|
$ 7.82 | |||||
| 17 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 111.20 | |||||
| 17 | 2198469AP | Grille (apollo Grey) |
|
- | |||||
| 18 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 19 | W10856122 | Screw (2) (Replaces: 3400103) |
|
$ 7.76 | |||||
| 20 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 21 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 22 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 34.79 | |||||
| 23 | 2220757 | Cover, Unit |
|
- | |||||
| 24 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | WP2203408W | Hinge Cover (white) (Replaces: 2203408W) |
|
$ 20.97 | |||||
| 25 | 2203408AP | Hinge Cover (apollo Grey) |
|
$ 94.47 | |||||
| 26 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 27 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.68 | |||||
| 28 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 29 | WP489483 | Screw (2) (Replaces: W10029680) |
|
$ 10.87 |
