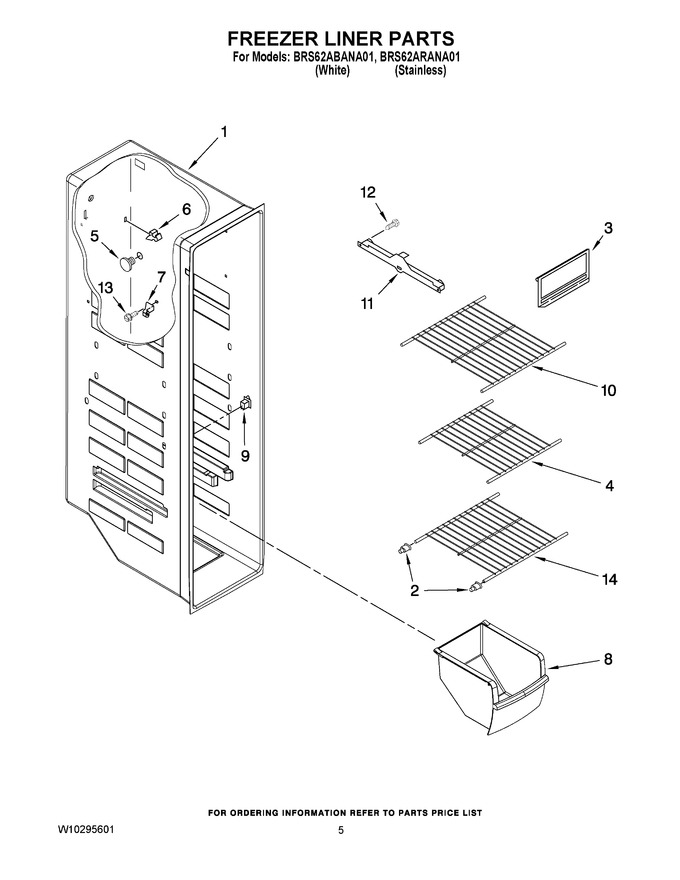

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	WPW10130299		Cup, Shelf Mounting (12)   (Replaces: W10130299)			Immediately	$ 14.00
3	2171712		Door, Ice Compartment				$ 66.58
4	WPW10318951		Shelf, Wire   (Replaces: W10154894)				$ 81.68
5	940014		Hole Plug				$ 18.33
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
8	WP2309758		Freezer Bin   (Replaces: W10154836)			Immediately	$ 124.47
9	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
10	WPW10318952		Shelf, Wire   (Replaces: W10154895)			Immediately	$ 88.08
11	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
11	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
12	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
13	W10142289		Screw   (Replaces: 3400893)				$ 9.15
14	WPW10318953		Shelf, Wire   (Replaces: W10154896)			Immediately	$ 83.58
