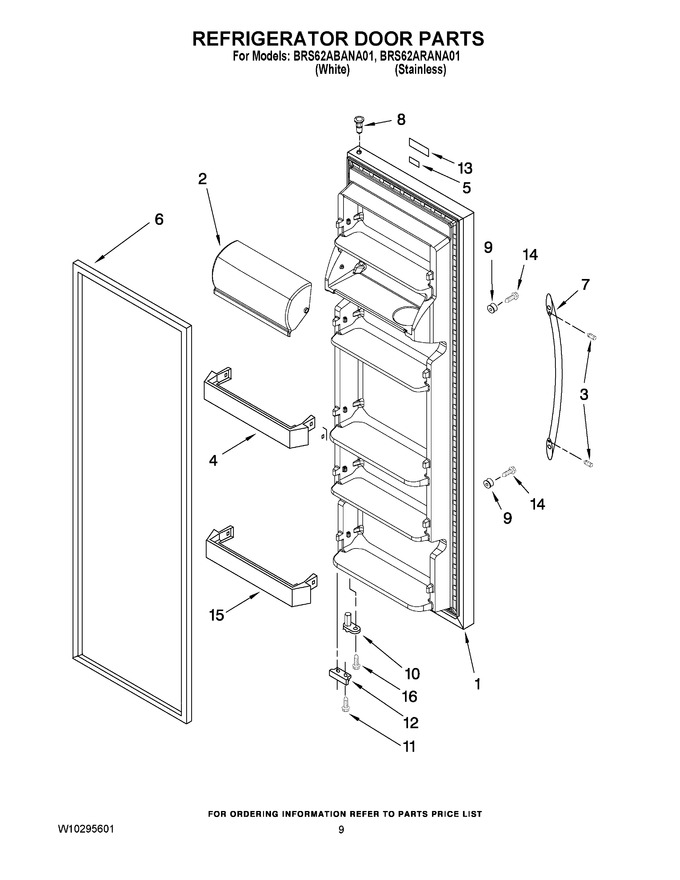

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10158844		Refrigerator Door (includes Item 6) (stainless)   (Replaces: W10158844)		Appelez-nous	-
1	LW10158849		Refrigerator Door (includes Item 6) (white)   (Replaces: W10158849)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	W11366418		Screw   (Replaces: W10114271)			Immediately	$ 15.79
4	2309719		Door Bin (4)				$ 34.48
5	2321228		Nameplate, Side-by-side		Appelez-nous	-
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
6	W10136732		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327161)			Immediately	$ 344.00
7	2254608S		Handle		Appelez-nous	-
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
9	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: W10029750)				$ 10.87
12	2321218AP		Bracket, Door Stop (apollo Grey)		Appelez-nous	-
12	2321218W		Bracket, Door Stop (white)		Appelez-nous	-
13	2321226		Nameplate		Appelez-nous	-
14	W10029730		Screw		Appelez-nous	-
15	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
16	W10029760		Screw		Appelez-nous	-
