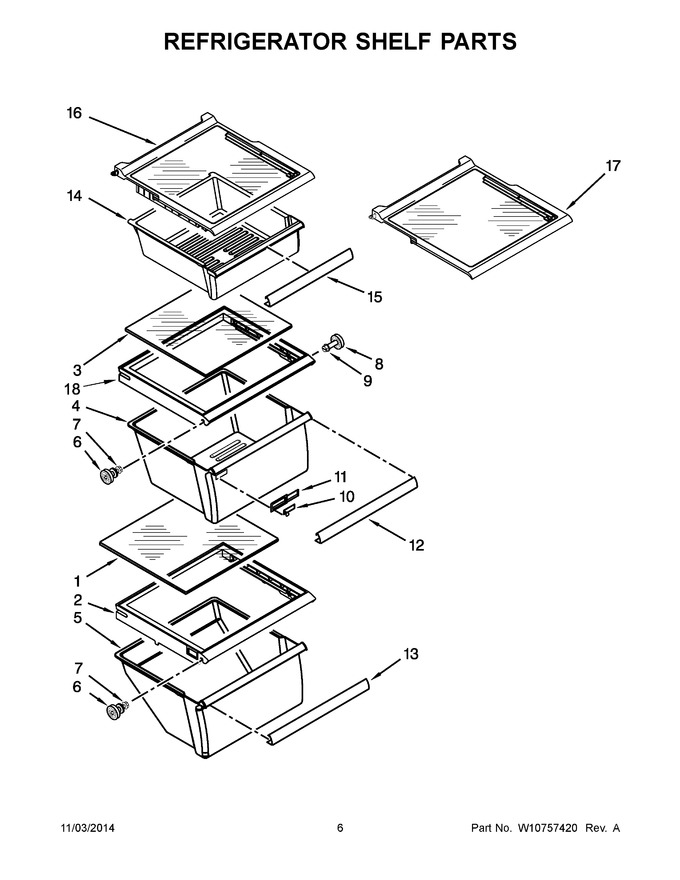

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
2	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 305.85
3	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
4	WP2188656		Pan, Crisper   (Replaces: 2188652)				$ 143.22
5	WP2188664		Pan, Meat   (Replaces: 2188654)			Immediately	$ 92.70
6	W11223328		Assembly, Shelf Stud   (Replaces: W10173126)			Immediately	$ 14.77
7	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
8	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
9	W10191952		Screw				$ 5.65
10	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
11	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 34.02
12	W10861746		Trim, Crisper Pan   (Replaces: W10630549)				$ 38.55
13	W11035574		Trim, Pan   (Replaces: W10630548)				$ 83.41
14	WP2309517		Pan, Snack   (Replaces: W10641229)				$ 133.06
15	WP2179243		Trim, Snack Pan   (Replaces: W10630550)				$ 109.65
16	WPW10276341		Shelf, Snack Pan   (Replaces: W10276341)				$ 217.50
17	WPW10276348		Assembly, Shelf   (Replaces: W10276348)			Immediately	$ 223.91
18	W10485332		Cover, Pan				$ 86.27
