Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10428790 Refrigerator Door (includes Item 4) (white) Appelez-nous -
2 WP2256101 Door, Compartment   (Replaces: 2256101) In-Stock Immediately $ 89.42

3 WPW10321304 Bin, Door   (Replaces: W10549739) In-Stock Immediately $ 44.73

4 2159073 Door Gasket, Magnetic (beige)   (Replaces: 2309600) Special Order $ 333.19

5 W10848410 Handle (white)   (Replaces: W10357236) Special Order $ 203.72

6 WP2182181 Thimble   (Replaces: 2182181) Special Order $ 8.15

7 WP2309941 Trivet   (Replaces: 2309941) In-Stock Immediately $ 76.32

8 WP2182179 Thimble, Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

9 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

10 W10219801 Bracket, Door Stop (silver) Special Order $ 5.27

11 WPW10511975 Nameplate (white)   (Replaces: W10511975) Special Order $ 80.84

12 WPW10661886 Screw   (Replaces: W10460893) In-Stock Immediately $ 12.88

13 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

14 WPW10321304 Bin, Door   (Replaces: W10321304) In-Stock Immediately $ 44.73

11A WPW10511972 Nameplate (grey)   (Replaces: W10511972) Special Order $ 79.55

1A W10407738 Refrigerator Door (includes Item 4) (black) Appelez-nous -
1B LW10407707 Refrigerator Door (includes Item 4) (biscuit/bisque)   (Replaces: W10407707) Appelez-nous -
1C W10424384 Refrigerator Door (includes Item 4) (monochromatic Stainless) Appelez-nous -
4A 2159081 Door Gasket, Magnetic (black)   (Replaces: 2309653) Special Order $ 335.58

4B W10136732 Door Gasket, Magnetic (grey)   (Replaces: 2327161) In-Stock Immediately $ 361.20

5A W10805245 Handle (black)   (Replaces: W10557412) Special Order $ 227.50

5B WPW10398789 Handle (biscuit/bisque)   (Replaces: W10398789) Special Order $ 265.80

5C W10899551 Handle (brushed Aluminum)   (Replaces: W10407272) In-Stock Immediately $ 188.82


    View Diagram in Separate Window     Print Icon   Print Part List

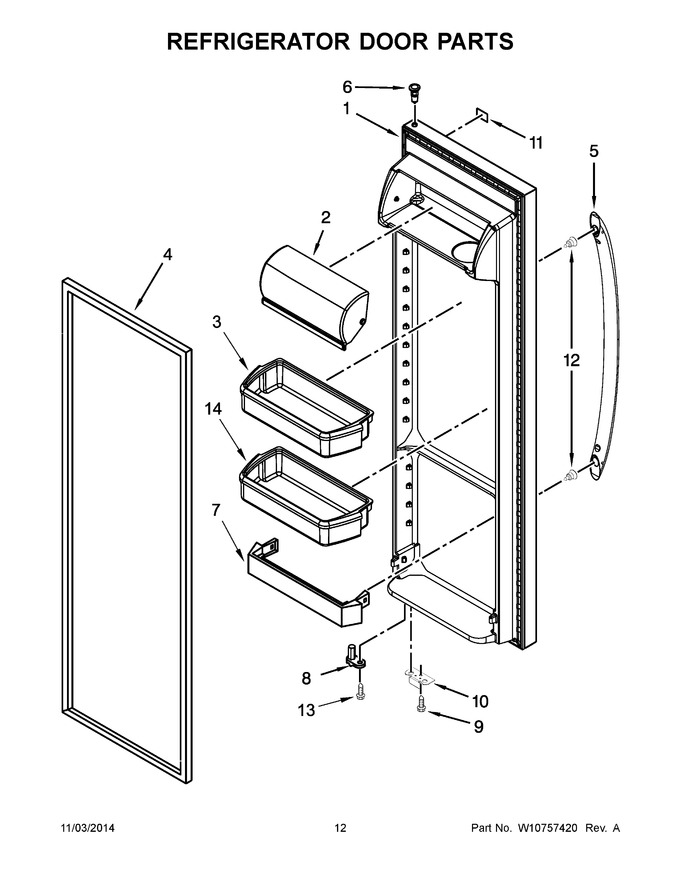

Diagram for WRS322FDAW03
