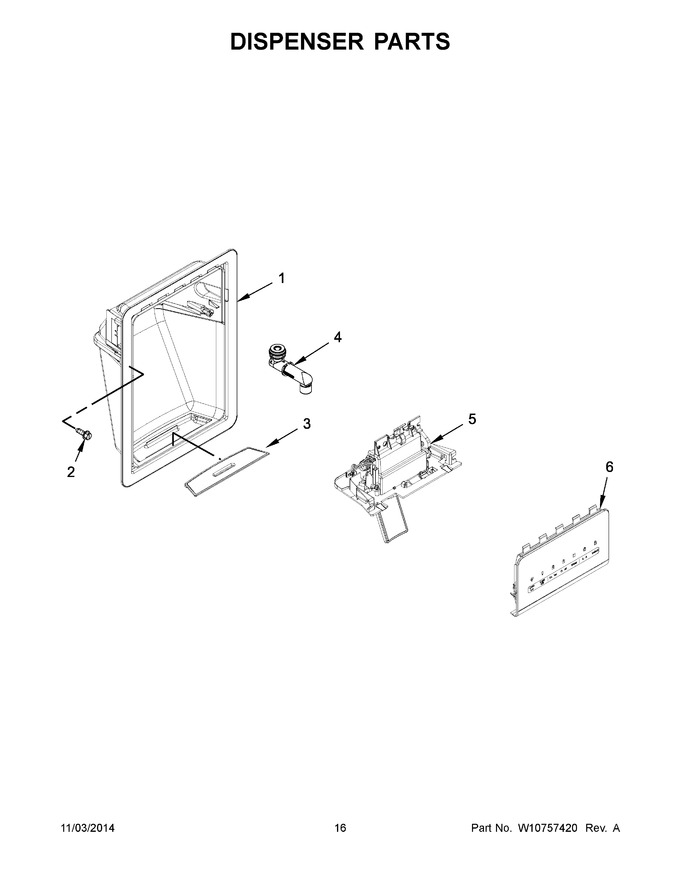

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WPW10397392		Grille, Overflow (white)   (Replaces: W10397392)				$ 51.23
4	WPW10397435		Water Fitting Assembly   (Replaces: W10397435)				$ 132.24
5	W10616140		Separator Assembly (white)				$ 123.75
6	WPW10397956		Ui Assembly Control (white)   (Replaces: W10397956)				$ 271.47
3A	WPW10397394		Grille, Overflow (black)   (Replaces: W10397394)				$ 50.86
3B	WPW10397992		Grille, Overflow (biscuit/bisque)   (Replaces: W10397992)				$ 49.51
3C	WPW10397395		Grille, Overflow (grey)   (Replaces: W10397395)				$ 51.23
5A	W10616141		Separator Assembly (black)				$ 123.90
5B	W10616143		Separator Assembly (biscuit/bisque)		Appelez-nous	-
5C	WPW10616142		Separator Assembly (grey)   (Replaces: W10616142)				$ 259.79
6A	W10397957		Ui Assembly Control (black)				$ 175.67
6B	WPW10397956		Ui Assembly Control (biscuit/bisque)   (Replaces: W10397960)				$ 271.47
6C	WPW10397956		Ui Assembly Control (grey)   (Replaces: W10397958)				$ 271.47
