SELECT A DIAGRAM

1 - Freezer Door

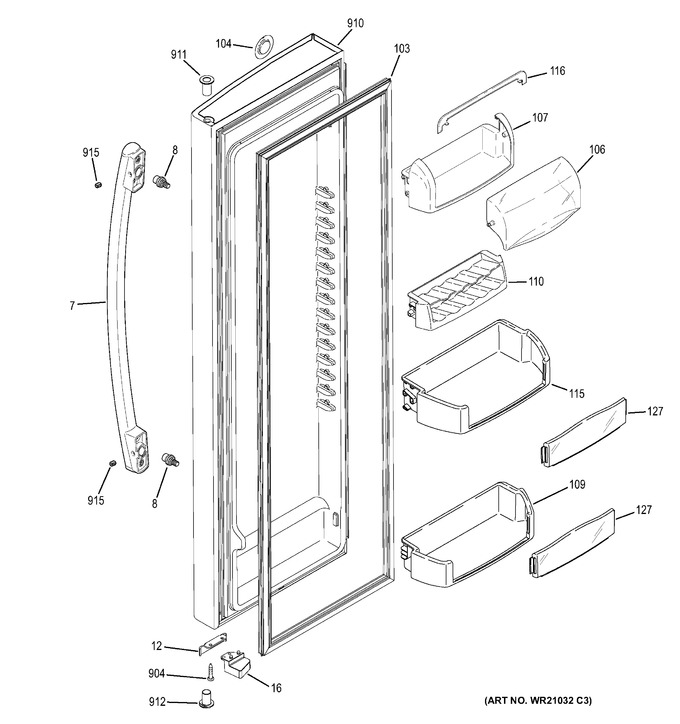

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X20439		Arc Handle Asm		Appelez-nous	-
8	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR02X10690		Stop Door White		Appelez-nous	-
16	WR02X10637		Cam Closure Ff White		Appelez-nous	-
103	WR24X10155		Gasket Door Ff Wh		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10979)				$ 38.81
110	WR71X10643		Rack Can		Appelez-nous	-
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10973)			Immediately	$ 63.43
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 68.21
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22624		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10207		Thimble Door Top White		Appelez-nous	-
911	WR01X10955		Thimble Door		Appelez-nous	-
912	WR01X10952		Thimble Door		Appelez-nous	-
912	WR01X10206		Thimble Door Bot White		Appelez-nous	-
915	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35

    View Diagram in Separate Window       Print Part List
