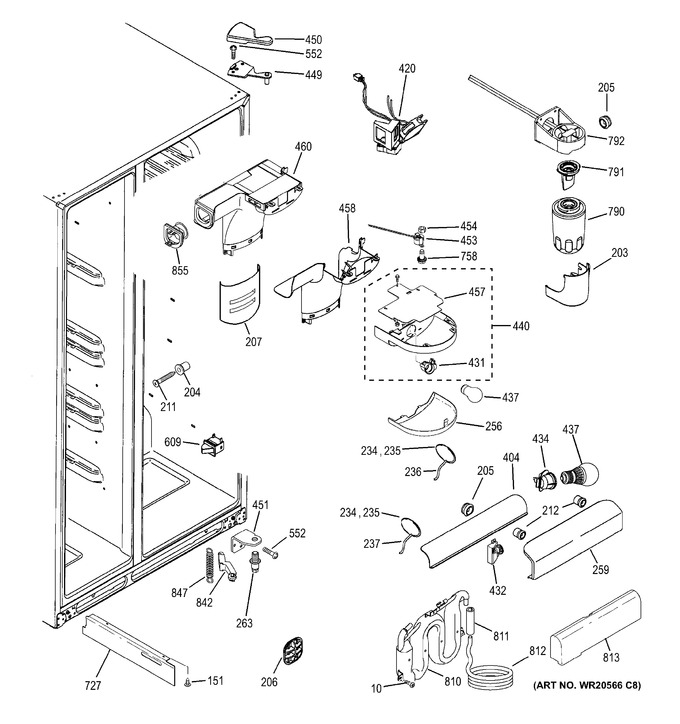

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Screw 10-32 Gxtt Flp 595 |
|
- | |||||
| 151 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 203 | WR17X12879 | Cover Water Filter |
|
- | |||||
| 204 | WR01A00968 | Support Shelf (Replaces: WR02X12187) |
|
Immediately | $ 3.97 | ||||
| 205 | WR01F00849 | Grommet (Replaces: WR02X10678) |
|
Immediately | $ 3.97 | ||||
| 206 | WR02X10671 | Grille Air Return |
|
- | |||||
| 207 | WR17X10909 | Cover Inlet Discharge |
|
- | |||||
| 211 | WR01X10568 | Scr8-18 Ab Ufl 1 1/2 Ss |
|
- | |||||
| 212 | WR02X13408 | Grommet Base Grille |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 236 | WR55X10939 | Sensor Temperature |
|
- | |||||
| 237 | WR55X10937 | Sensor Temperature |
|
- | |||||
| 256 | WR17X11942 | Shield Light Ff |
|
- | |||||
| 259 | WR01L01143 | Light Shield (Replaces: WR17X11943) |
|
$ 68.39 | |||||
| 263 | WR01A00453 | Pin Hinge Btm Adj Hollow (Replaces: WR02X12263) |
|
$ 17.01 | |||||
| 404 | WR17X12667 | Diverter Air |
|
- | |||||
| 420 | WR60X10226 | Fan & Damper Asm Ff |
|
- | |||||
| 431 | WR01F00746 | Socket Lamp (Replaces: WR02X10732) |
|
$ 12.31 | |||||
| 432 | WR02X12287 | Reflector Asm Middle |
|
- | |||||
| 434 | WR02X10645 | Socket Lamp |
|
- | |||||
| 437 | WR02X22604 | Lamp Led |
|
- | |||||
| 440 | WR17X12907 | Housing Lamp Asm |
|
- | |||||
| 449 | WR13X10217 | Hinge Top & Pin Assy Ff |
|
- | |||||
| 450 | WR02X10688 | Cover Hinge White |
|
- | |||||
| 451 | WR13X10134 | Hinge Btm White |
|
- | |||||
| 453 | WR23X10493 | Harness Ff Lt |
|
- | |||||
| 454 | WR01X10212 | Nut 8-32 |
|
- | |||||
| 457 | WR17X12201 | Reflector Ff Light |
|
- | |||||
| 458 | WR17X12881 | Cover Ff Inlet |
|
- | |||||
| 460 | WR49X10252 | Cover Asm Ff Inlet |
|
- | |||||
| 552 | WR01X10792 | Scr 12-24 Tt Hx 7/8 S |
|
- | |||||
| 609 | WG03A03078 | Switch Light (Replaces: WR23X10530) |
|
Immediately | $ 12.23 | ||||
| 727 | WR17X12295 | Separator Air Hiside |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 790 | PMMWF | Water Filt Ref Cyst (Replaces: MWF) |
|
Immediately | $ 81.88 | ||||
| 791 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 792 | WR01F00791 | Filter Asm And Tube (Replaces: WR17X11920) |
|
Immediately | $ 23.80 | ||||
| 810 | WR01F01814 | Water Tank Disp Asm (Replaces: WR17X11440) |
|
Immediately | $ 25.22 | ||||
| 811 | WR02X11288 | Insul Tube Foam |
|
- | |||||
| 812 | WR17X11439 | Tube Plastic |
|
- | |||||
| 813 | WR01F01096 | Insulation Tank Foam (Replaces: WR17X11620) |
|
$ 15.49 | |||||
| 842 | WR11X10007 | Lever Assy Ff Side |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 | |||||
| 855 | WR02X13091 | Duct Asm Ff Transition |
|
- |
