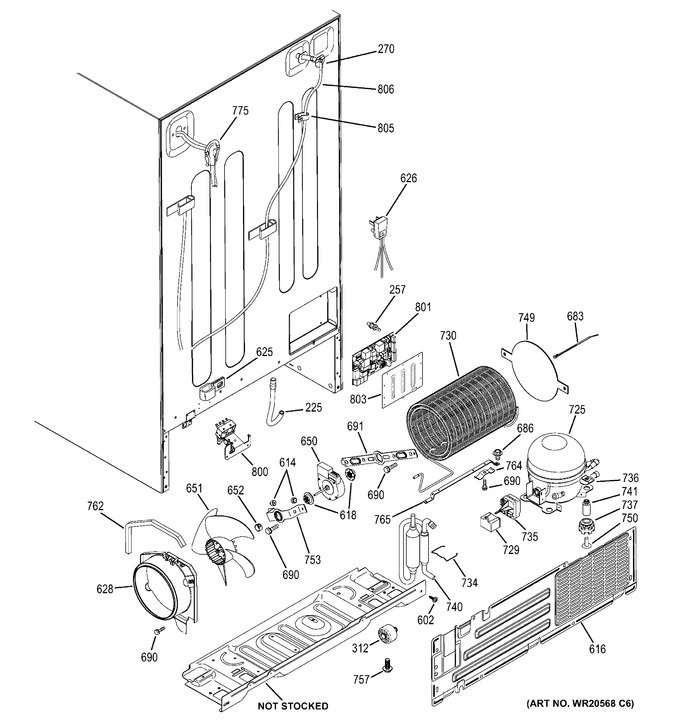

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 602 | WR01X10592 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR01L14249 | Access Cover (Replaces: WR82X10103) |
|
$ 62.81 | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 625 | WR01X10684 | Clamp Cable |
|
- | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 686 | WR01X10252 | Screw 10-32 Tt Hxw 5/16 |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WG03F00141 | Compressor Kit Egys60 (Replaces: WR87X10224) |
|
Immediately | $ 797.08 | ||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 730 | WR01F02892 | Prod Serv Condenser (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 735 | WR08X21100 | Tsd Combo |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X13159 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X10796 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve Assy W/o Gua |
|
$ 71.10 | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 805 | WR02X12265 | Clamp Tube |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 15.88 | |||||
| WR01A00747 | Bucket& Auger Asm- Service Kit |
|
$ 214.72 | ||||||
| WR01F01881 | Tube Plastique |
|
$ 15.88 | ||||||
| WR01F01884 | Tube |
|
Immediately | $ 36.53 | |||||
| WR01F02043 | Capacitor |
|
Immediately | $ 17.17 | |||||
| WR01F02867 | Thermostat Def |
|
Immediately | $ 45.00 | |||||
| WR01F03672 | Interface Dispenser Asm |
|
$ 97.82 | ||||||
| WR03F04587 | Lamp Led (Replaces: WR01F03774) |
|
$ 42.08 | ||||||
| WR01F04224 | Board Main Asm |
|
Immediately | $ 193.94 | |||||
| WG03F00141 | Compressor Kit Egys60 |
|
Immediately | $ 797.08 | |||||
| WR01L00950 | Cover Hinge |
|
$ 25.01 | ||||||
| WR01L01269 | Butter/cheese Lid |
|
$ 61.06 | ||||||
| WR01L01524 | Door Foam Asm Fz |
|
$ 232.06 | ||||||
| WR01L02169 | Ff Door Gasket Wh |
|
$ 74.83 | ||||||
| WR01L02559 | Icemaker Asm (Replaces: WR01L02566) |
|
Immediately | $ 136.45 | |||||
| WR01L08655 | Poignee Asm. |
|
$ 74.70 | ||||||
| WR01L09340 | Tsd Combo |
|
Immediately | $ 35.14 | |||||
| WR01L09612 | Door Foam Asm Ff |
|
$ 201.86 | ||||||
| WR01L00943 | Cover Hinge Fz |
|
$ 14.08 | ||||||
| WG04F11911 | Valve (Replaces: WG03F00685) |
|
Immediately | $ 94.13 | |||||
| WG03F00773 | Heater Harness Def Asm |
|
Immediately | $ 161.80 | |||||
| WG03A03078 | Interrupteur Lumiere (Replaces: WG03L06695) |
|
Immediately | $ 12.23 | |||||
| WR01A00003 | Kit Air Tower |
|
Immediately | $ 190.78 | |||||
| WR01A00445 | Lever Ff |
|
$ 14.91 | ||||||
| WR01A00448 | Lever Fz |
|
$ 20.39 |
