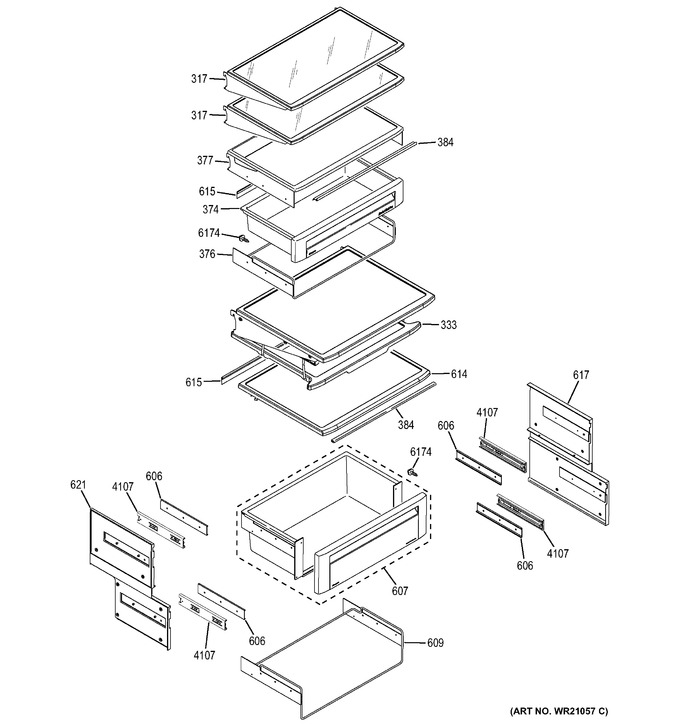

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
317	WR71X10814		Encapsulated Shelf Asm		Appelez-nous	-
333	WR71X10866		Quick Shelf Asm		Appelez-nous	-
374	WR32X10325		Snack Pan Asm		Appelez-nous	-
376	WR02X12854		Snack Pan Wire Spt 42		Appelez-nous	-
377	WR71X10817		Shelf Snack Pan Asm 42		Appelez-nous	-
384	WR40X10040		Seal Pan Front		Appelez-nous	-
606	WR72X10369		Slide Inner		Appelez-nous	-
607	WR32X10326		Veg Pan Asm		Appelez-nous	-
609	WR72X10249		Veg Pan Wire Support		Appelez-nous	-
614	WR32X10692		Shelf Asm Pan Top		Appelez-nous	-
615	WR02X12849		Pan Rear Seal 42		Appelez-nous	-
617	WR72X10329		Pan Side Support Rh		Appelez-nous	-
621	WR72X10330		Pan Side Support Lh		Appelez-nous	-
4107	WG03L00743		Slide Outer   (Replaces: WR72X10366)				$ 61.96
6174	WR01X10449		Screw 6x1/2 Pan Phil H/l		Appelez-nous	-
