Diagram for 9 - Quick Chill
9 - Quick Chill


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
320 WR60X23125 Qc Mullion Asm 42 Appelez-nous -
327 WR32X10552 Quick Chill Pan Assy 42" Appelez-nous -
328 WR31X20918 Qc Damper Kit Appelez-nous -
329 WR71X11061 Veg Wire Frame Modified Appelez-nous -
330 WR13X21086 Cover Qc Damper Appelez-nous -
331 WR13X21088 Cover Qc Appelez-nous -
344 WR31X20917 Qc Housing Asm Kit Appelez-nous -
348 WR51X10138 Heater Thaw Appelez-nous -
380 WR02X13054 Cover Water Lines Appelez-nous -
394 WR23X21080 Harness Ff Lower Appelez-nous -
894 WG03F07360 Thermostat Cutoff   (Replaces: WR50X10088) Special Order $ 88.13


    View Diagram in Separate Window     Print Icon   Print Part List

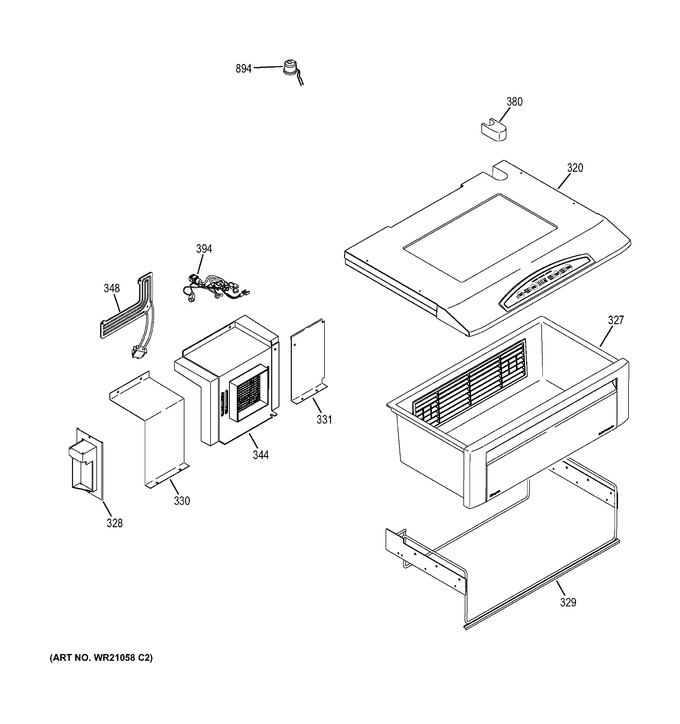

Diagram for ZISS420DHASS
