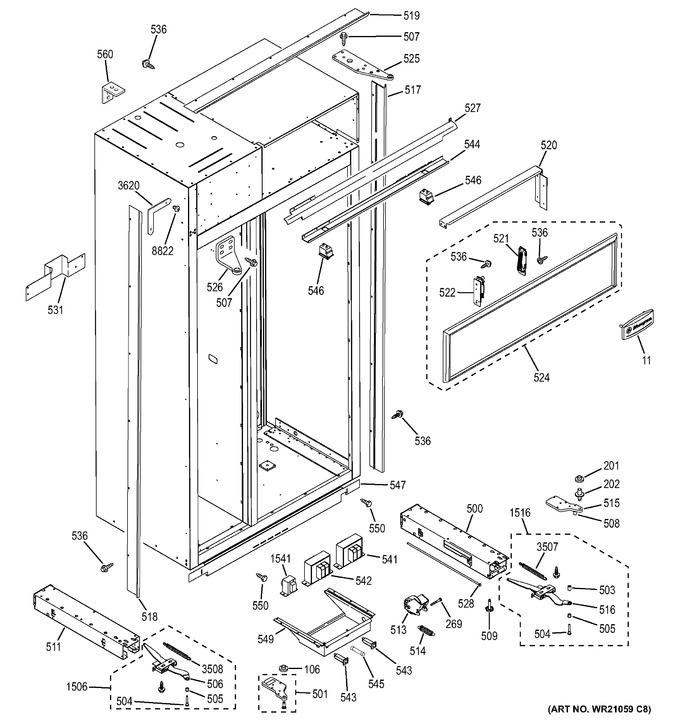

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WS01A00367		Monogram Badge   (Replaces: WB02K10295)				$ 12.40
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
201	WG03A00011		Bushing Hinge Bottom   (Replaces: WR02X10953)				$ 73.58
202	WR01A01444		Lower Ff Adj Hinge Pin   (Replaces: WR13X10239)				$ 21.63
269	WR01X10809		Key Pivot		Appelez-nous	-
500	WR13X10965		Base Channel Rh		Appelez-nous	-
501	WR13X23603		Hinge Case Bottom Fz		Appelez-nous	-
503	WR01L08607		Spacer Ff Door Closure   (Replaces: WR02X11231)				$ 21.71
504	WR02X11207		Bolt Shoulder		Appelez-nous	-
505	WR02X10951		Bhng Arm Nylon Ff Dr Cl		Appelez-nous	-
506	WR02X13151		Actuator Arm		Appelez-nous	-
507	WR01X10177		Hinge Screw Door Btm		Appelez-nous	-
508	WR02X11209		Shear Pin		Appelez-nous	-
509	WR02X10479		Leveling Leg		Appelez-nous	-
511	WR13X10966		Base Channel Lh		Appelez-nous	-
513	WR2X8377		Wheel Asm.		Appelez-nous	-
514	WG03A00253		Spring Wheel #le022c4   (Replaces: WR02X11233)				$ 15.88
515	WR13X23372		Hinge Case Bottom		Appelez-nous	-
516	WR02X13152		Actuator Arm		Appelez-nous	-
517	WG03L05391		Trim Case Rh Side   (Replaces: WR17X12831)			Immediately	$ 192.66
518	WR17X11181		Case Trim Fz Side		Appelez-nous	-
519	WR17X11353		Case Trim Top		Appelez-nous	-
520	WR13X11001		Mount Hood Grill Hinge		Appelez-nous	-
521	WR13X10910		Hinge Grill		Appelez-nous	-
522	WR13X10911		Hinge Grill		Appelez-nous	-
524	WR78X21712		Grill Asm Euro		Appelez-nous	-
525	WR13X10656		Hinge Ff Upper		Appelez-nous	-
526	WR13X10246		Fz Hinge Sxs Case Upper		Appelez-nous	-
527	WR74X10112		Eyebrow Switch Cover		Appelez-nous	-
528	WR01X10186		Base Shaft		Appelez-nous	-
531	WR02X12853		Fill Tube Cover - Disp		Appelez-nous	-
536	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
541	WG03F00952		Sxs Transformer 140va   (Replaces: WR62X10069)				$ 659.04
542	WG03F00652		Transformer Fz Lights   (Replaces: WR62X10030)				$ 590.97
543	WG03F00293		Fuse, 2 Amp   (Replaces: WR23X10269)				$ 89.11
544	WR17X12550		Plate Switch Sxs		Appelez-nous	-
545	WR01F00842		Fuse   (Replaces: WR55X10766)				$ 9.53
546	WG03F09086		Switch Light   (Replaces: WR23X10143)			Immediately	$ 11.12
547	WR49X10299		Toe Kick Asm		Appelez-nous	-
549	WR17X21023		Tray Transformer		Appelez-nous	-
550	WG03A00431		8-32 X 3/8 Phil Ph Ty C   (Replaces: WR01X10370)				$ 4.20
560	WR01X10825		Bracket Anti-tip		Appelez-nous	-
1506	WR02X11208		Link Actuator Fz		Appelez-nous	-
1516	WR02X11211		Link Aucator Ff		Appelez-nous	-
1541	WG02F11798		Transformer   (Replaces: WR62X10070)				$ 165.31
3507	WG03A00042		Spring Closure   (Replaces: WR02X12948)				$ 31.76
3508	WG03A01588		Spring Closure, Blue   (Replaces: WR02X12949)				$ 31.76
3620	WR02X11335		Trim Corner Key		Appelez-nous	-
8822	WH2X1211		Screw		Appelez-nous	-
	WR01F03637		Switch			Immediately	$ 17.47
	WG03F00070		Bracket And Valve Asm,monogram				$ 167.45
	WG03F00417		Im Crescent			Immediately	$ 207.39
	WG03F04074		Auger Motor, Disp				$ 181.31
	WG03F04887		Inverseur   (Replaces: WG03F04840)			Immediately	$ 411.43
	WG03F05191		Board Asm Main Control				$ 258.16
	WG03L07700		Grill Asm Euro Sxs 42"		Appelez-nous	-
	WG03L07701		Wrap Ss Fz 36/42 Euro		Appelez-nous	-
	WG03L07708		Glass Touch Disp Asm Blk				$ 512.04
	WG03F05829		Wrap Ff Sxs Euro 42" Nd   (Replaces: WG03L07712)				$ 3,091.23
	WR01F00145		Board Asm Disp Lighting				$ 15.88
	WR01F00328		Manchon				$ 151.81
	WG03A02319		Paddle Dispenser				$ 73.76
