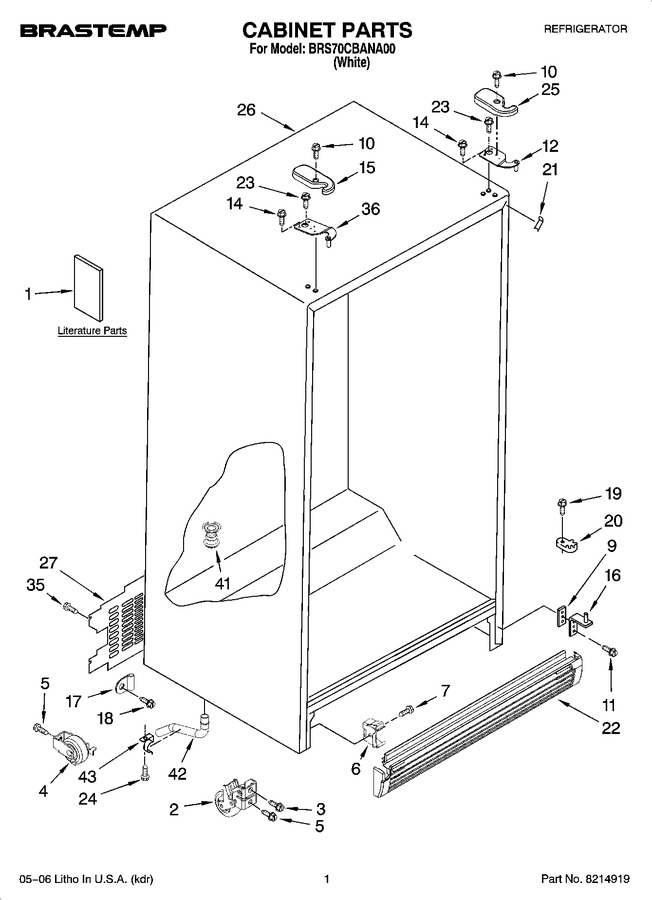

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2305947 | Energy Guide |
|
- | |||||
| 1 | 2315153 | Installation Instructions |
|
- | |||||
| 1 | 2214341 | Use & Care Guide |
|
- | |||||
| 1 | 2261067 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 9 | WP2181911 | Shim (2) (Replaces: 2156056) |
|
$ 34.87 | |||||
| 10 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 11 | WP489497 | Screw (4) (Replaces: W10029670) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 14 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 15 | WP2203407W | Hinge Cover (fc) (Replaces: 2203407W) |
|
$ 21.79 | |||||
| 16 | 2317455 | Hinge, Bottom (2) |
|
- | |||||
| 17 | W10833902 | Clamp, Cord (Replaces: 2305545) |
|
$ 11.54 | |||||
| 18 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 19 | WP489483 | Screw (Replaces: W10029680) |
|
$ 11.41 | |||||
| 20 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 21 | 2196094 | Filler, Wrapper |
|
- | |||||
| 22 | WPW10283946 | Grille (Replaces: 2198470W) |
|
$ 150.70 | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 25 | WP2203408W | Hinge Cover (rc) (Replaces: 2203408W) |
|
$ 22.02 | |||||
| 27 | 2214571 | Cover, Unit |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 36 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 41 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 |
