SELECT A DIAGRAM

01 - Cabinet Parts

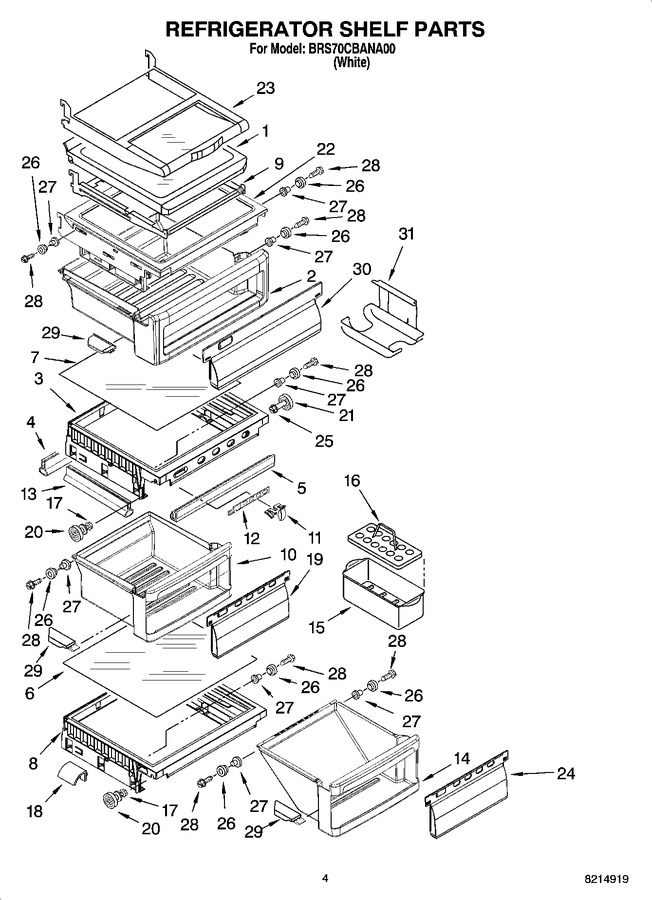

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141748		Shelf Assembly Glass Sliding   (Replaces: 2194736)				$ 357.65
2	2301120		Snack Pan (includes 26, 27, 28, 29 & 30)		Appelez-nous	-
3	2301032		Cover, Crisper (includes 4, 5, 11, 12, 13, 26, 27 & 28)		Appelez-nous	-
4	2301115		Gasket, Rear		Appelez-nous	-
5	WP1125528		Gasket, Front   (Replaces: 2301116)				$ 161.69
6	2301028		Glass, Meat Cover				$ 85.17
7	2301027		Glass, Crisper Cover		Appelez-nous	-
8	2301033		Cover, Meat Pan (includes 18, 26, 27 & 28)				$ 52.51
9	2317446		Frame, Shelf		Appelez-nous	-
10	2301118		Crisper Pan (includes 19, 26, 27, 28 & 29)		Appelez-nous	-
11	2301025		Knob, Humidity Control				$ 74.39
12	2301026		Slide, Humidity Control		Appelez-nous	-
13	2301117		Gasket, Side (2)				$ 143.37
14	2301119		Meat Pan (includes 24, 26, 27, 28 & 29)		Appelez-nous	-
15	W10136387A		Egg Bin   (Replaces: 2216625)				$ 19.54
16	WP2177817		Egg Carrier   (Replaces: 2177817)				$ 18.78
17	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
18	2301126		Deflector		Appelez-nous	-
19	2301001		Window, Crisper				$ 75.59
20	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
22	2301034		Shelf, Snack Pan		Appelez-nous	-
23	2317451		Shelf, Flip-up		Appelez-nous	-
24	2301227		Window, Meat Pan		Appelez-nous	-
25	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
26	2301152		Roller		Appelez-nous	-
27	2301153		Eyelet, Roller		Appelez-nous	-
28	8533983		Screw		Appelez-nous	-
29	2301016		Cap, Corner (right Side)		Appelez-nous	-
29	2301017		Cap, Corner (left Side)		Appelez-nous	-
30	2301006		Window, Snack Pan				$ 135.77
31	2187254K		Can Caddy		Appelez-nous	-
