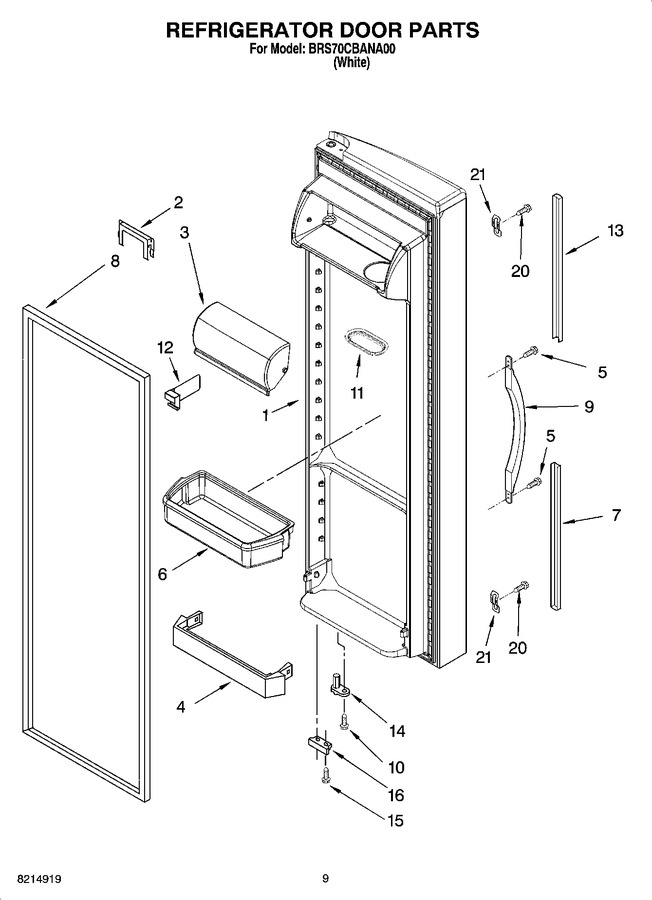

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318282W		Refrigerator Door (includes Item 8)		Appelez-nous	-
2	2173643K		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2318736		Trivet   (Replaces: 2223727)				$ 76.94
5	WP489491		Screw   (Replaces: W10029700)				$ 7.30
6	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
7	2217186W		Trim, Door-bottom		Appelez-nous	-
8	2159075		Door Gasket, Magnetic (service)   (Replaces: 2221302)			Immediately	$ 333.00
9	2217185W		Handle, Center		Appelez-nous	-
10	W10029760		Screw		Appelez-nous	-
11	2165792K		Butter Dish				$ 9.72
12	2195496K		Divider, Bin		Appelez-nous	-
13	2217187W		Trim, Door-top		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw (includes 19, 26, 27, 28 & 29)   (Replaces: W10029750)				$ 11.41
16	2318276W		Bracket, Door Stop		Appelez-nous	-
20	WP3400852		Screw   (Replaces: W10029720)				$ 10.33
21	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
