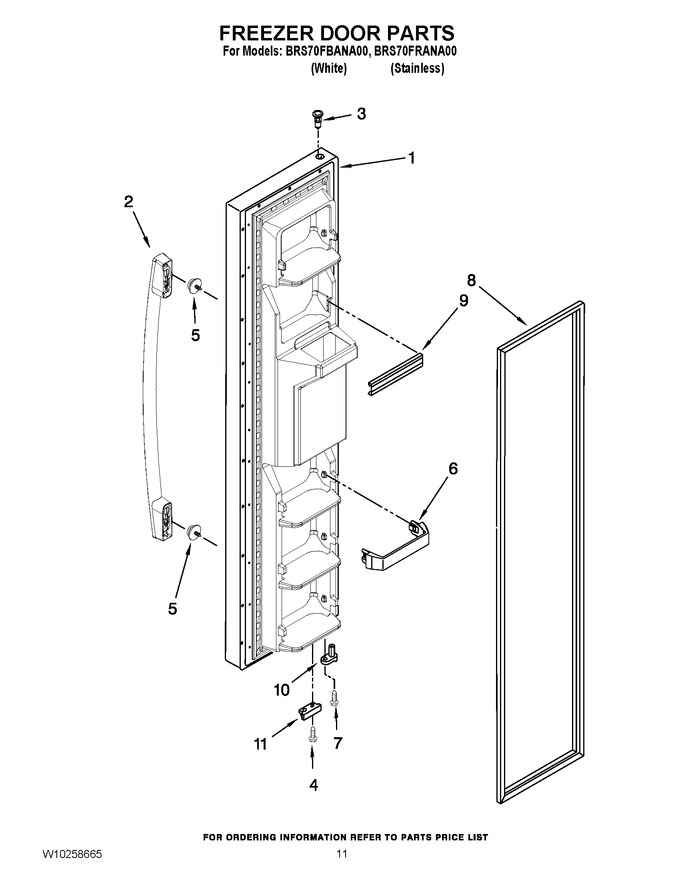

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10201412 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 1 | W10201398 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | WPW10257118K | Handle (Replaces: W10257118) |
|
$ 196.99 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 4 | WP489483 | Screw (Replaces: W10029750) |
|
$ 11.41 | |||||
| 5 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 6 | WP2171157 | Trivet (Replaces: W10154867) |
|
$ 63.70 | |||||
| 7 | W10029760 | Screw |
|
- | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309532) |
|
$ 325.70 | |||||
| 8 | W10136735 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2327164) |
|
$ 254.84 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 24.27 | ||||
| 10 | 2323535 | Door Closer, Upper Cam |
|
$ 33.97 | |||||
| 11 | 2323534 | Bracket, Door Stop |
|
- |
