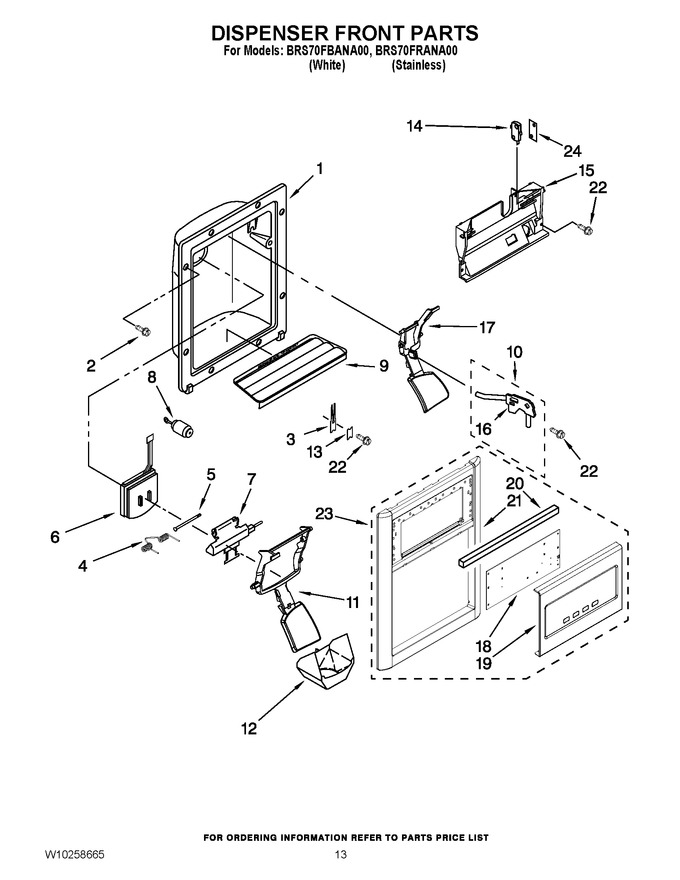

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11245710		Screw   (Replaces: W10029710)			Immediately	$ 14.75
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	W10467899		Mechanism Delay		Appelez-nous	-
9	WP2206670B		Grille, Overflow (black)   (Replaces: W10189532)			Immediately	$ 35.52
9	WP2206670W		Grille, Overflow (white)   (Replaces: 2206670W)				$ 72.24
10	2318280		Water Fitting Assembly (includes Water Tube)		Appelez-nous	-
11	WPW10152853		Lever, Ice Dispenser (white)   (Replaces: W10152853)				$ 111.84
11	WPW10152854		Lever, Ice Dispenser (black)   (Replaces: W10152854)				$ 109.00
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 28.71
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 60.19
16	WP2304673		Bracket, Dispenser   (Replaces: 2318279)				$ 16.38
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: W10152858)			Immediately	$ 109.83
17	WPW10152859		Lever, Water Dispenser (black)   (Replaces: W10152859)			Immediately	$ 102.82
18	N/P		Switch Assembly (not Available Order No.23)		Appelez-nous	-
19	N/P		Overlay, Front Cover (not Available Order No.23)		Appelez-nous	-
20	N/P		Gasket (not Available, Order No.23)		Appelez-nous	-
21	N/P		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	W10029740		Screw		Appelez-nous	-
23	WPW10289522		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)   (Replaces: W10289522)				$ 249.64
23	W10201268		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
