SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

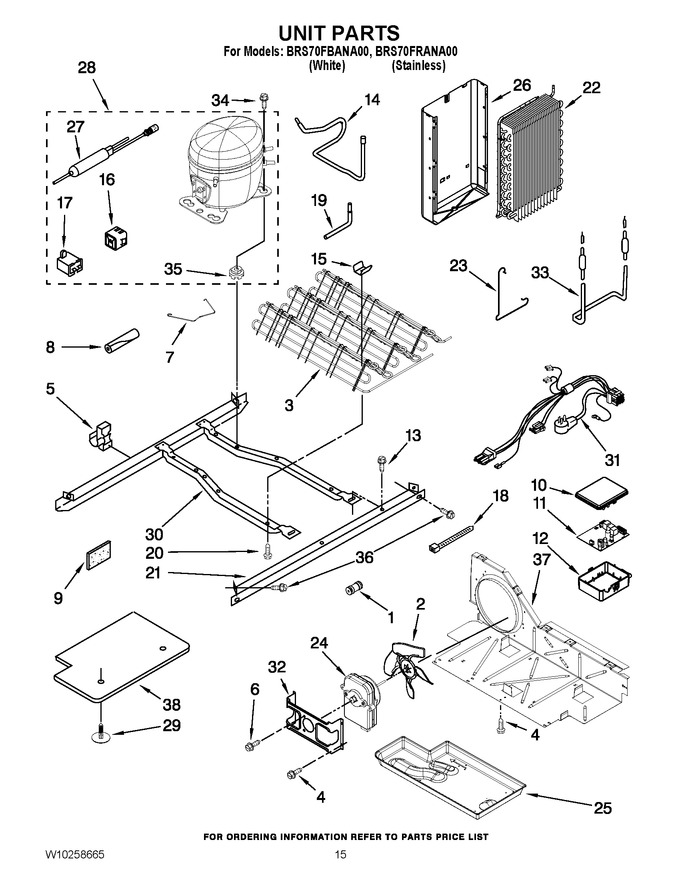

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector   (Replaces: W10334458)				$ 21.59
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly (also Order No.1)   (Replaces: W10222348)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.59
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2223314		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.07
10	2255624		Box Cover		Appelez-nous	-
11	2322547		Elec. Control				$ 244.11
12	2326982		Control Box				$ 86.07
13	WP489427		Screw   (Replaces: 489427)				$ 7.47
14	2205765		Tube Suction				$ 36.04
15	W10683556		Clip, Condenser(2)   (Replaces: 2311725)				$ 18.46
16	WP2304885		Start-device Combination (start Relay And Overload) (service)   (Replaces: 2304885)				$ 179.47
17	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
17	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
18	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
19	2325479		Process Tube		Appelez-nous	-
20	W11544659		Screw   (Replaces: 8281232)				$ 13.67
21	W10196313		Unit Mounting Rail		Appelez-nous	-
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
23	2161324		Clamp		Appelez-nous	-
24	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10194475		Heat Shield		Appelez-nous	-
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	W10139460		Compressor (includes Items 16, 17, 27, & 35) (also Order 876765 Tube Kit)   (Replaces: W10120460)				$ 491.28
29	489396		Clip				$ 10.72
30	W10196321		Unit Mounting Frame		Appelez-nous	-
31	W10267023		Unit, Harness (includes Powercord)		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	W10130261		Heater, Defrost		Appelez-nous	-
34	876811		Screw   (Replaces: 489373)				$ 7.42
35	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
35	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
36	489340		Screw (5)		Appelez-nous	-
37	W10332806		Air Baffle				$ 102.82
38	2304899		Unit Cover, Bottom		Appelez-nous	-
NI	876764		Valve, Access (3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25

    View Diagram in Separate Window       Print Part List
