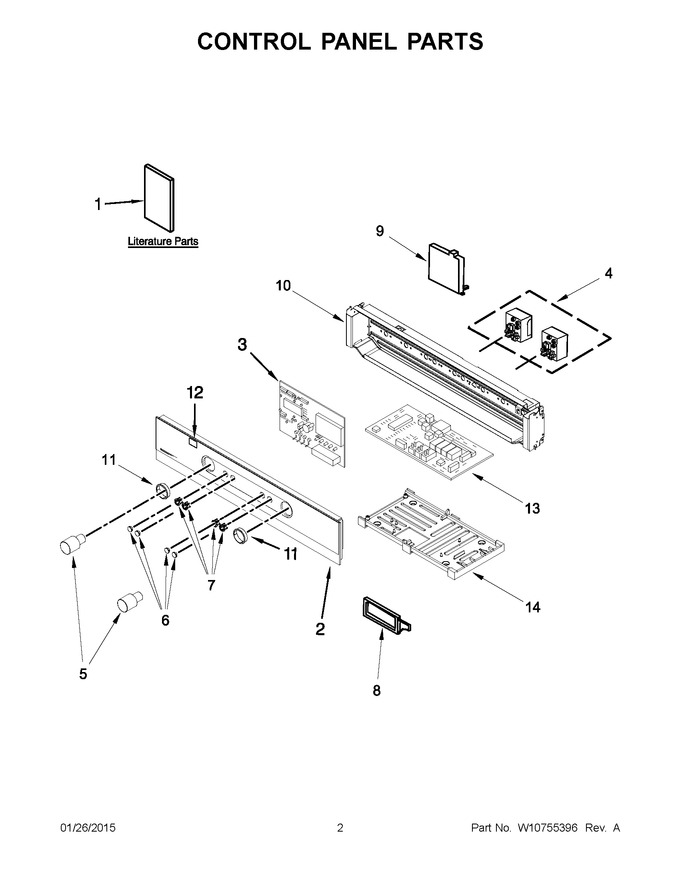

02 - Control Panel Parts
03 - Cabinet Parts
04 - Door Parts
05 - Top Venting Parts
06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10721497 | Instructions, Installation |
|
- | |||||
| 2 | W10721488 | Panel, Control (stainless) |
|
$ 284.49 | |||||
| 3 | W10770413 | Interface, User (Replaces: W10623616) |
|
Immediately | $ 309.32 | ||||
| 4 | W10623992 | Dial, Control |
|
- | |||||
| 5 | W10591098 | Knob |
|
$ 109.31 | |||||
| 6 | W11086664 | Button (Replaces: W10251249) |
|
Immediately | $ 22.99 | ||||
| 7 | W11116990 | Holder, Button (Replaces: W10251250) |
|
Immediately | $ 31.29 | ||||
| 8 | 461967750153 | Holder, Display Board (Replaces: 8205657) |
|
$ 82.59 | |||||
| 9 | W10884489 | Holder, Control Board (Replaces: 8205739) |
|
$ 77.02 | |||||
| 10 | W10696315 | Support, Panel |
|
$ 139.50 | |||||
| 11 | 461960204751 | Ring |
|
$ 43.16 | |||||
| 12 | W10251401 | Disc, Function |
|
$ 83.95 | |||||
| 13 | W11196485 | Board, Power (Replaces: W10591453) |
|
Immediately | $ 432.42 | ||||
| 14 | 461967750752 | Holder, Pcb |
|
$ 70.71 | |||||
| 1A | W10721495 | Guide, Use & Care |
|
- | |||||
| 1B | W10721496 | Guide, Quick Reference |
|
- | |||||
| 1C | W10242831 | Sheet, Tech |
|
- |
