01 - Cover Sheet
02 - Control Panel Parts
03 - Cabinet Parts

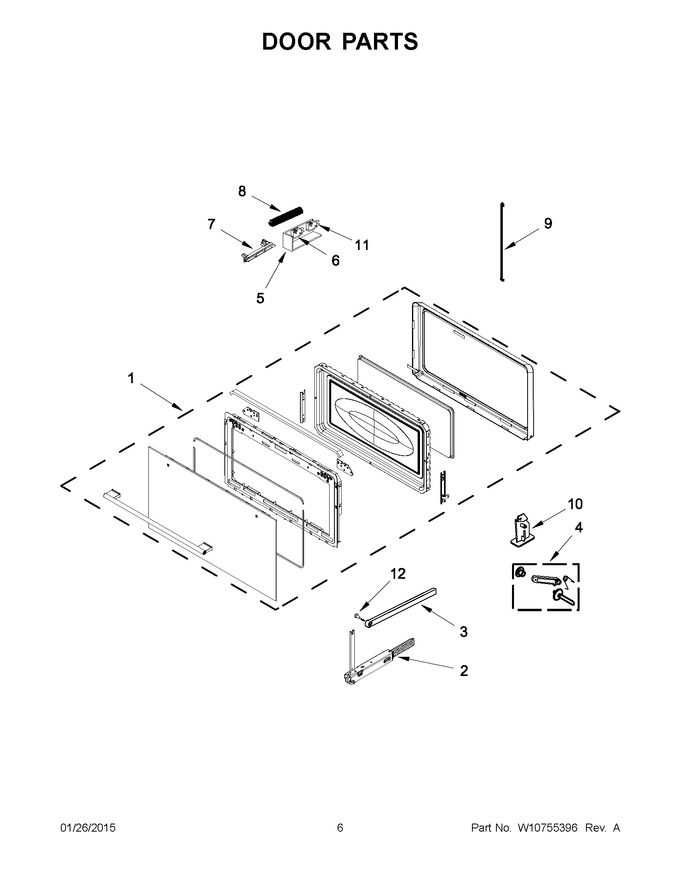

04 - Door Parts
05 - Top Venting Parts
06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10721486 | Assembly, Door (stainless) |
|
$ 417.06 | |||||
| 2 | W11700293 | Hinge, Door (Replaces: W10593336) |
|
Immediately | $ 76.95 | ||||
| 3 | W11214480 | Arm, Sliding (Replaces: W10120236) |
|
$ 100.54 | |||||
| 4 | WPW10128850 | Pin, Damper (Replaces: W10120470) |
|
Immediately | $ 142.08 | ||||
| 5 | WP8205683 | Holder, Switch (Replaces: 461967750452) |
|
Immediately | $ 171.75 | ||||
| 6 | W10211972 | Switch (Replaces: 461967848881) |
|
Immediately | $ 52.40 | ||||
| 7 | WPW10120235 | Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 7.32 | ||||
| 8 | W11715912 | Spring, Cam (Replaces: 8205685) |
|
Immediately | $ 8.27 | ||||
| 9 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 72.30 | |||||
| 10 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 15.52 | ||||
| 11 | W10211972 | Switch, Door (Replaces: 4375346) |
|
Immediately | $ 52.40 | ||||
| 12 | WPW10128850 | Bushing (Replaces: W10120469) |
|
Immediately | $ 142.08 |
