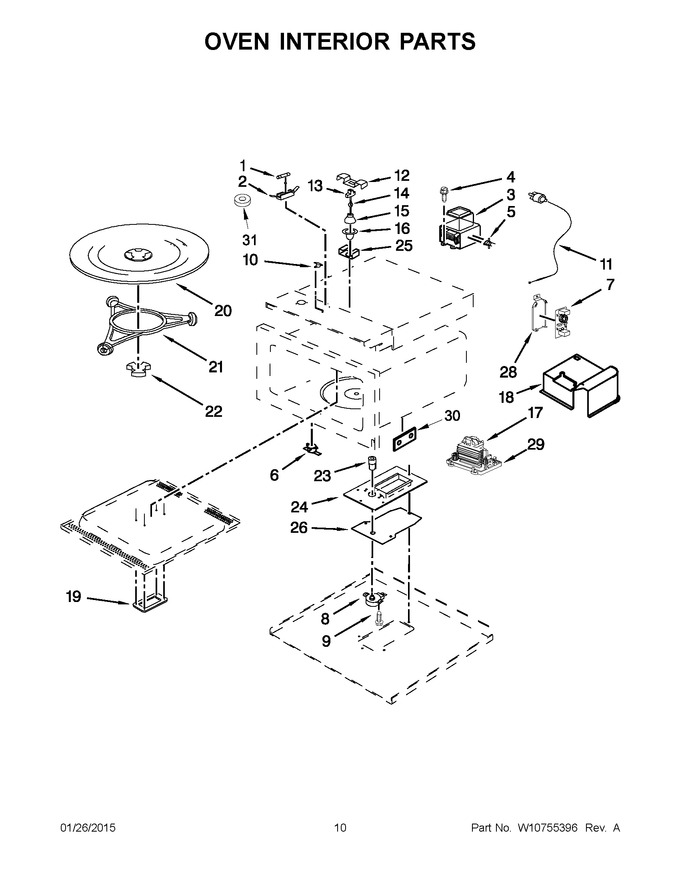

06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 19.97 | ||||
| 2 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 78.58 | |||||
| 3 | 8206079 | Magnetron |
|
Immediately | $ 299.79 | ||||
| 4 | 8205651 | Screw |
|
- | |||||
| 5 | WP4375079 | Thermostat, Magnetron (Replaces: 4375079) |
|
$ 82.36 | |||||
| 6 | W11846983 | Thermostat (Replaces: W10141630) |
|
Immediately | $ 17.01 | ||||
| 7 | W10591655 | Filter, Noise |
|
$ 115.49 | |||||
| 8 | W10911403 | Motor, Turntable (Replaces: W10510101) |
|
Immediately | $ 155.97 | ||||
| 9 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 10.92 | |||||
| 10 | W11676348 | Thermostat, Cavity (Replaces: 8205659) |
|
$ 39.95 | |||||
| 11 | 8205660 | Cord, Power |
|
- | |||||
| 12 | W10474015 | Spring, Lamp Holder |
|
- | |||||
| 13 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 70.04 | |||||
| 14 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 29.00 | ||||
| 15 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 77.31 | |||||
| 16 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 94.34 | ||||
| 17 | W10217711 | Inverter (Replaces: W10468206) |
|
Immediately | $ 316.27 | ||||
| 18 | W10130907 | Cover, Inverter |
|
$ 96.94 | |||||
| 19 | W11087199 | Cover, Inlet (Replaces: 8205675) |
|
Immediately | $ 20.01 | ||||
| 20 | W11373838 | Turntable (Replaces: 8205540) |
|
Immediately | $ 79.52 | ||||
| 21 | W10422379 | Assembly, Turntable Ring |
|
$ 55.25 | |||||
| 22 | W11223840 | Driver, Turntable (Replaces: 8205539) |
|
$ 25.14 | |||||
| 23 | W11126044 | Shaft, Turntable Drive (Replaces: 8205682) |
|
$ 27.21 | |||||
| 24 | 461967008471 | Holder, Turntable Motor (Replaces: 8205681) |
|
$ 77.31 | |||||
| 25 | W11440819 | Clip, Spring (Replaces: W10120231) |
|
$ 20.70 | |||||
| 26 | W10120234 | Cover, Motor |
|
$ 43.07 | |||||
| 27 | W10526670 | Ring, Rubber |
|
- | |||||
| 28 | W10130891 | Holder, Filter |
|
- | |||||
| 29 | W10130906 | Holder, Inverter |
|
$ 166.51 | |||||
| 30 | W10915651 | Plate, Cover (Replaces: W10120230) |
|
Immediately | $ 80.01 | ||||
| 31 | W10769147 | Sealing, Lamp (Replaces: 461967700941) |
|
Immediately | $ 22.04 |
