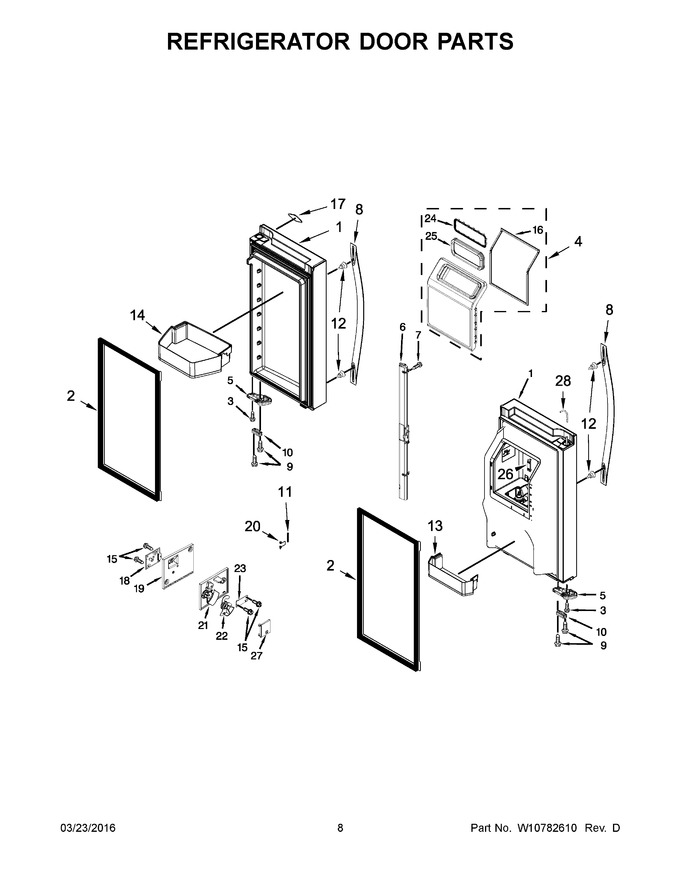

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10815692 | Door, Refrigerator (includes Item 2) Left Hand (stainless) (Replaces: W10634615) |
|
Immediately | $ 1,730.60 | ||||
| 2 | W10846057 | Gasket, Door (grey) (Replaces: W10686118) |
|
Immediately | $ 353.06 | ||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.94 | |||||
| 4 | WPW10549589 | Door, Ice (Replaces: W10549589) |
|
$ 372.28 | |||||
| 5 | W10904595 | Latch, Door Closer (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 6 | W11122876 | Mullion, Door (grey) (Replaces: W10733652) |
|
$ 191.35 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10883202 | Handle, Door (stainless) (Replaces: W10806905) |
|
$ 103.64 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 11 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W11366475 | Trivet, 2 Liter (Replaces: W10728185) |
|
Immediately | $ 80.10 | ||||
| 14 | W11371716 | Bin, Gallon (Replaces: W10728194) |
|
Immediately | $ 167.63 | ||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | WPW10393265 | Badge (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 20 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 48.97 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 28 | W11126260 | Tube, Water (Replaces: W10663692) |
|
$ 126.44 | |||||
| 1A | W10634620 | Door, Refrigerator (includes Item 2) Right Hand (stainless) |
|
- | |||||
| 5A | W11212164 | Latch, Door Closer (right Hand) (Replaces: W10712953) |
|
$ 17.59 |
