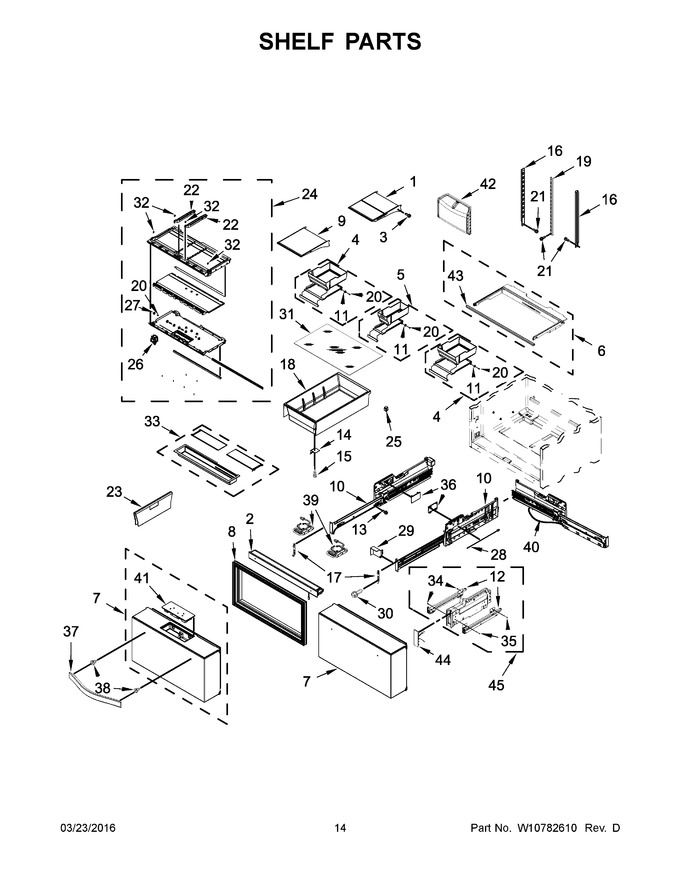

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10709175 | Assembly, Tuck Shelf (Replaces: W10709175) |
|
$ 327.75 | |||||
| 2 | W10730996 | Assembly, Secondary Mullion (grey) |
|
- | |||||
| 3 | W10421495 | Screw |
|
$ 19.09 | |||||
| 4 | W10839369 | Crisper, Medium (Replaces: W10509272) |
|
$ 199.20 | |||||
| 5 | W10509275 | Crisper, Small |
|
$ 160.15 | |||||
| 6 | W11127833 | Cover, Crisper (Replaces: W10788103) |
|
$ 231.46 | |||||
| 7 | W10815674 | Door, Pantry (includes Item 8) Left Hand (stainless) (Replaces: W10733259) |
|
$ 875.73 | |||||
| 8 | W10832386 | Gasket, Pantry (grey) (Replaces: W10685868) |
|
$ 337.73 | |||||
| 9 | WPW10709163 | Assembly, Shelf (Replaces: W10709163) |
|
$ 363.26 | |||||
| 10 | W11294518 | Adapter, Pantry (left Hand) (Replaces: W10718058) |
|
$ 266.67 | |||||
| 11 | W10788795 | Roller (Replaces: W10530295) |
|
$ 20.60 | |||||
| 12 | W10735384 | Glide, Compact (also Order Items 34 And 35) (left Hand) |
|
$ 347.98 | |||||
| 13 | WP98006631 | Screw (Replaces: 98006631) |
|
$ 7.30 | |||||
| 14 | W10704335 | Clip, Drawer Body |
|
$ 15.34 | |||||
| 15 | W10664603 | Screw |
|
$ 14.47 | |||||
| 16 | W11819951 | Ladder, Side (Replaces: W10467460) |
|
- | |||||
| 17 | W10732765 | Clip, Glide Door |
|
$ 18.74 | |||||
| 18 | W10882850 | Drawer, Pantry (Replaces: W10730609) |
|
- | |||||
| 19 | W10467461 | Ladder, Center |
|
Immediately | $ 52.31 | ||||
| 20 | 67006692 | Screw (Replaces: 12991401) |
|
$ 10.79 | |||||
| 21 | W10423561 | Screw |
|
- | |||||
| 22 | W10638123 | Guide, Crisper |
|
$ 292.10 | |||||
| 23 | W11026309 | Divider, Pantry Pan (Replaces: W10709891) |
|
$ 47.36 | |||||
| 24 | W10802388 | Assembly, Floor (includes Heater) |
|
- | |||||
| 25 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 26 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 27 | W10788795 | Roller |
|
$ 20.60 | |||||
| 28 | W11168403 | Thermistor (Replaces: W10549991) |
|
$ 86.14 | |||||
| 29 | W10711645 | Cover, Connector |
|
$ 110.65 | |||||
| 30 | W10756178 | Screw (Replaces: W10140652) |
|
$ 6.29 | |||||
| 31 | W11038526 | Glass, Crisper (Replaces: W10493549) |
|
$ 263.10 | |||||
| 32 | 12702901 | Pad, Glide |
|
- | |||||
| 33 | W10634634 | Assembly, Secondary Mullion Bin |
|
- | |||||
| 34 | W10737730 | Nut, Rivet |
|
$ 15.14 | |||||
| 35 | W10737605 | Screw |
|
$ 10.55 | |||||
| 36 | W10518036 | Cover, Side Adapter |
|
$ 22.75 | |||||
| 37 | W10915399 | Handle, Door (stainless) (Replaces: W10696995) |
|
- | |||||
| 38 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 39 | W11683243 | Assembly, Led Light Module (Replaces: W10660728) |
|
Immediately | $ 269.91 | ||||
| 40 | W11170612 | Harness, Side Adapter (Replaces: W10512203) |
|
Immediately | $ 82.35 | ||||
| 41 | WPW10677119 | Interface, User (stainless) (Replaces: W10677119) |
|
Immediately | $ 414.41 | ||||
| 42 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 17.15 | ||||
| 43 | W10530297 | Support, Crisper Front |
|
$ 161.23 | |||||
| 44 | W10830861 | Assembly, Mullion Cover (grey) (Replaces: W10733546) |
|
$ 81.68 | |||||
| 45 | W10738093 | Assembly, Pantry Center Adapter |
|
- | |||||
| 10A | W11294519 | Adapter, Pantry (right Hand) (Replaces: W10718057) |
|
$ 194.17 | |||||
| 12A | W11242542 | Glide, Compact (also Order Items 34 And 35) (right Hand) (Replaces: W10735385) |
|
$ 295.20 | |||||
| 7A | W10815676 | Door, Pantry (includes Item 8) Right Hand (stainless) (Replaces: W10738900) |
|
$ 995.82 |
