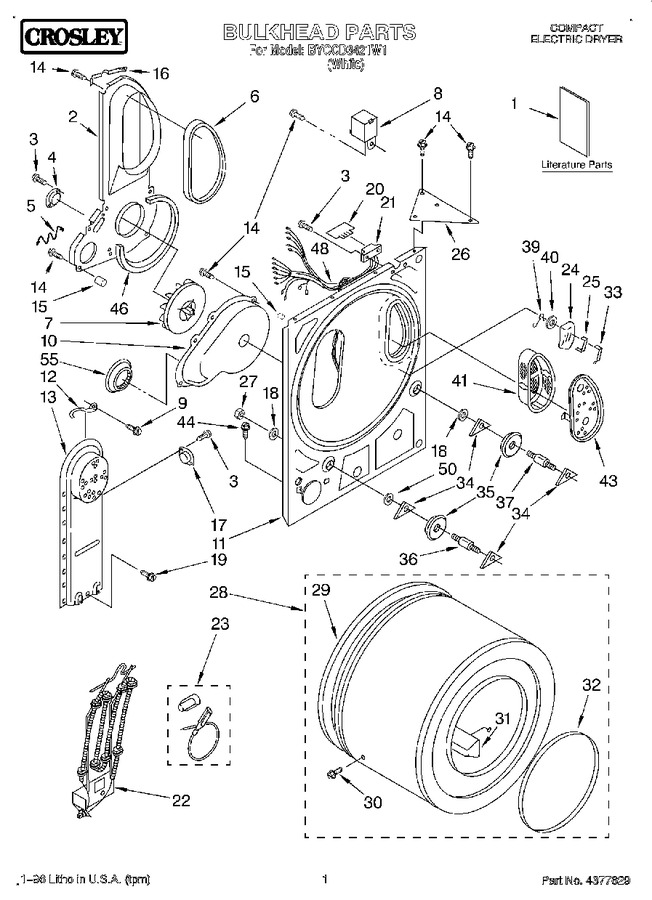

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9830918		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT9830789		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT9830513		Literature Parts (label, Operating Instructions)		Appelez-nous	-
1	LIT9831129		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	696538		Air Duct Assembly		Appelez-nous	-
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
4	AT022		Thermostat, 145~ (63~c)   (Replaces: 660074)			Immediately	$ 35.17
5	345965		Guard, Exhaust				$ 75.38
6	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
7	WP696426		Wheel, Blower   (Replaces: 696426)			Immediately	$ 130.18
8	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
9	WP489463		Screw, 8-18 X 3/4   (Replaces: 3400800)				$ 7.82
10	696419		Scroll, Fan				$ 136.82
11	279848		Bulkhead   (Replaces: 3398726)				$ 347.41
12	279771		Clip   (Replaces: 3398161)				$ 14.33
13	685457		Box, Heater		Appelez-nous	-
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
15	W10491983		Cap, Screw   (Replaces: 359702)		Appelez-nous	-
16	345396		Clip   (Replaces: 9830393)		Appelez-nous	-
17	LS2-175		(alt.)   (Replaces: 341197)			Immediately	$ 27.33
17	660368		Thermostat, 180~ (82~c)		Appelez-nous	-
18	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
20	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
21	3391885		Connector, Edge				$ 86.40
22	279506		Heater Element (includes Illus. 23)   (Replaces: 694821)				$ 266.92
23	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
24	279366		Pad, Sensor   (Replaces: 348861)				$ 95.85
25	WP348859		Electrode, Inside   (Replaces: 348859)				$ 7.98
26	345325		Gusset (2)		Appelez-nous	-
27	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.19
28	3391834		Drum Assembly   (Replaces: 695943)				$ 354.77
29	279735		Seal, Rear   (Replaces: 345648)			Immediately	$ 66.71
30	697777		Screw		Appelez-nous	-
31	00685207		Baffle, Drum (3)   (Replaces: 685207)				$ 326.00
32	WP3394508		Bearing, Ring   (Replaces: 3394508)				$ 125.58
33	WP348860		Electrode, Outside   (Replaces: 348860)				$ 8.05
34	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
35	349241T		Roller, Support   (Replaces: 3397588)			Immediately	$ 29.53
36	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 72.71
37	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 47.30
39	WP342267		Clip, Sensor (2)   (Replaces: 342267)				$ 7.75
40	WP298877		Washer, Insulating   (Replaces: 298877)				$ 22.58
41	W10828351		Screen, Lint   (Replaces: 348399)			Immediately	$ 56.24
43	W10828351		Cover, Lint Screen   (Replaces: 685273)			Immediately	$ 56.24
44	WP3390631		Screw (4)   (Replaces: 342202)				$ 7.82
46	9830394		Seal		Appelez-nous	-
48	9831661		Harness, Wiring		Appelez-nous	-
50	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.47
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	978883		Almond (uncut)		Appelez-nous	-
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
55	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
55	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
